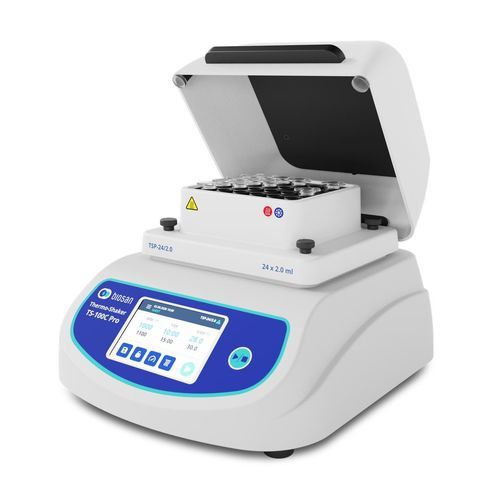

Orbital thermoshaker TS-100C Pro

digitalintegratedbenchtop

Description
The TS-100C Pro is a programmable laboratory thermal shaker that integrates precise heating and cooling, intensive shaking and interchangeable thermoblocks in a single compact instrument. Designed for repeatable sample-preparation workflows, it lets users create and store multi-step programs on the touchscreen to minimise manual parameter changes and sample transfers between separate heating, cooling and shaking devices.

MAIN ADVANTAGES

• Heating, cooling and shaking in one unit for efficient temperature-controlled sample preparation.
• Shaking speeds up to 2,500 rpm to support intensive mixing, bead resuspension, extraction and lysis workflows.
• Automatic thermoblock recognition detects the installed block and limits maximum speed accordingly.
• Quick thermoblock exchange without external tools or separate cable connections to reduce setup time between applications.
• Advanced on-screen programming with up to 20 saved programs and up to 20 steps per program including holds, repetitions and parameter transitions.
• Clear touchscreen interface showing set and actual temperature, speed, time and program status at a glance.
• Quick Mix function for short mixing cycles using selected parameters without creating a full program.
• Up to five configurable user profiles and screen lock to protect established methods in shared laboratories.
• Integrated system and maintenance information (serial number, firmware version, run hours, calibration status, service reminders and diagnostics); user manual accessible via QR code on-screen.

APPLICATIONS
The TS-100C Pro is suitable for DNA/RNA extraction, NGS library preparation, magnetic-bead purification and resuspension, cell lysis, protein extraction, enzymatic reactions, incubation, hybridisation and analytical sample preparation. A range of interchangeable thermoblocks configures the instrument for various tube, strip and plate formats.

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Temperature set range: +4°C ... +100°C
• Temperature control range: 15°C above/below ambient ... +100°C (see manual)
• Temperature resolution: 0.1°C
• Temperature stability: ±0.1°C
• Temperature accuracy at +37°C: ±0.5°C
• Average heating rate (+25°C → +100°C): 8°C/min
• Average cooling rate (+100°C → +25°C): 5°C/min
• Average cooling rate (+25°C → +4°C): 1.8°C/min
• Block temperature uniformity at +4°C: ±0.6°C
• Block temperature uniformity at +37°C: ±0.1°C
• Block temperature uniformity at +100°C: ±0.3°C
• Temperature calibration coefficient range: 0.936 ... 1.063 (±0.063)
• Shaking speed range: 250–2500 rpm (max depends on installed block)
• Digital timer: 1 min–96 h or continuous (1 min increment)
• Orbit: 2 mm
• Display: 3.5" TFT, 320×480
• Maximum continuous operation: 168 h
• PC connection: USB-C
• Overall dimensions (L×D×H): 220×250×115 mm (without block)
• Weight: 5.1 kg
• Input current / power: 12 V DC, 11.5 A / 138 W
• External power supply: AC 100–240 V; 50–60 Hz; DC output 12 V
