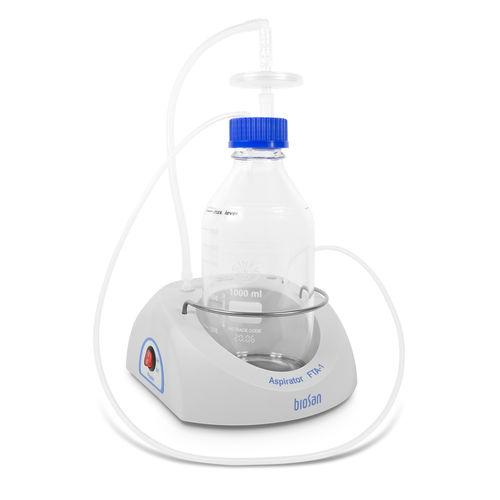

Oil-free vacuum pump FTA-1

230VACAC12VDC

Description
Aspirator FTA-1 is designed for aspiration and removal of residual alcohol or buffer from microtest tube walls during DNA/RNA purification and other macromolecule reprecipitation techniques. The device is also suitable for routine cell-washing from culture medium and resuspension in buffer. The aspirator creates negative pressure in the trap flask using a built-in microcompressor. The collecting tip is connected to the trap flask by a polyethylene tube. Liquid is removed from the microtest tube when the collecting tip contacts the solution surface. A tube holder-organizer is located on the right side of the FTA-1 and accommodates two tubes (for example, hydrochloric acid solution and distillate) required for washing and storing the collecting tip to enable re-use.

Filtration
Hydrophobic microbiologic filter 2200/02 prevents contamination transfer from the trap flask; efficiency up to 99.9%, retains particles larger than 0.027 µm.

Accessories

• MA-8 — 8-channel aspiration tip with holder, autoclavable (Catalognr BS-040108-BK)
• Spare tubing set for FTA-1 — (Catalognr BS-040108-S22)
• Spare filter for FTA-1 — (Catalognr BS-040108-S25)

Catalog numbers / Variants

• BS-040108-AAG — 230VAC 50/60Hz Euro plug
• BS-040108-AAK — 100-240VAC 50/60Hz Multi plug (EU, UK, AU, US)
• BS-040108-CK — IQ OQ document
• BS-040108-DK — PQ document

Technical specifications

• Vacuum: -500 mbar
• Trap flask: 1 litre
• Dimensions with trap flask (W×D×H): 186 x 213 x 327 mm
• Weight with trap flask: 1.8 kg
• Input current / power consumption: 12 V, 300 mA / 3.6 W
• External power supply: Input AC 100–240 V; 50/60 Hz; Output DC 12 V
