Laboratory photometer-colorimeters DEN-600

portablevisibleUSB

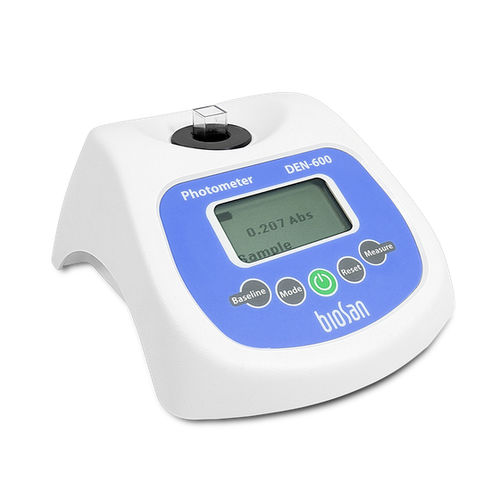

Overview DEN-600 is a compact, portable, rechargeable battery-powered photometer with a 600 nm optical system supporting Absorbance (OD600), McFarland turbidity (McF) and Bradford protein assays. Designed as a cost-effective alternative to a spectrophotometer, the device is suitable for use inside biosafety cabinets, anaerobic chambers or for relocation between laboratory rooms for on-site measurements.

Key capabilities The vessel holder accommodates standard 10 mm path cuvettes, round-bottom and conical vials, and Falcon tubes (Ø12–16 mm), enabling readings in Abs (OD) or McF units. USB connectivity and DEN software enable data transfer, processing and calculation, software calibration for Bradford assays, and custom calibration for specific vessels and turbidity standards.

Common applications

• Cell concentration measurement
• Cell growth monitoring and growth-curve estimation
• Log-phase determination for microbial induction
• Preparation of competent cells
• Bradford protein quantification
• Antibiotic susceptibility testing
• Inhibition and antimicrobial assays

Technical specifications

• Measurement range: 0 – 3.0 Abs | 0 – 16.00 McF
• Resolution: 0.001 Abs | 0.01 McF
• Light source: LED
• Photodetector: Silicon photodiode
• Measurement wavelength (λ): 600 nm ±10 nm
• Vessel type: 10 mm path cuvettes; round-bottom and conical tubes; Falcon tubes Ø12–16 mm
• Measurement modes: Absorbance (Abs), McFarland (McF)
• Accuracy: ±0.006 @ 1 Abs | ±0.1 @ 0–8 McF
• Repeatability: ±0.003 @ 1 Abs | ±0.05 @ 0–8 McF
• Battery type: Li-Ion rechargeable
• PC requirements: Intel/AMD CPU, 1 GB RAM, Windows 10/11, USB
• Dimensions (W×D×H): 120 × 145 × 65 mm
• Weight: 0.5 kg
• Input current / power consumption: 12 V, 0.2 A / 2.5 W
• External power supply: AC 100–240 V input, DC 12 V output
