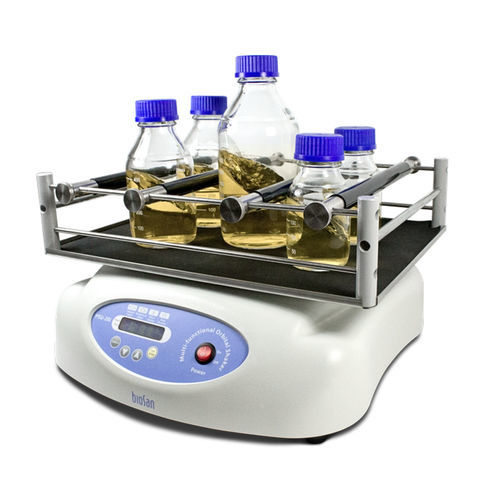

Orbital laboratory shaker PSU-20i

vibratingdigitalfor laboratory

Overview
PSU-20i is a multifunctional laboratory shaker providing three motion types: orbital, reciprocal and vibrating. Motions can be applied separately, in pairs or sequentially in repetitive cycles. The unit is designed for small specialized labs as well as large multidisciplinary facilities and is suited to biopharmaceutical and biomedical research workflows.

Performance and reliability
The shaker operates quietly and reliably thanks to a direct-drive system and a brushless motor with a rated lifetime up to 35,000 working hours. Direct drive and brushless motor enable continuous mixing up to 7 days and support extended continuous use beyond two years under normal laboratory conditions.

Platforms and accessories

• UP-330 — BS-010145-AK — Universal platform with adjustable bars; accommodates laboratory glassware of different shapes.
• P-30/100 — BS-010135-BK — Platform with clamps for flasks.
• P-16/250 — BS-010135-CK — Platform with clamps for flasks.
• P-9/500 — BS-010135-AK — Platform with clamps for flasks.
• P-6/1000 — BS-010135-DK — Platform with clamps for flasks.
• PP-20/4 — BS-010126-EK — Flat platform with non-slip rubber mat for various low-profile containers.
• PP-20/3 — BS-010126-DK — Flat platform with non-slip rubber mat for various low-profile containers.
• PP-20/2 — BS-010126-CK — Flat platform with non-slip rubber mat for various low-profile containers.
• PP-20 — BS-010126-BK — Flat platform with non-slip rubber mat for various low-profile containers.
• HB-330 — BS-010145-BK — Additional holding bar for UP-330.
• UP-168 — BS-010135-JK — Universal platform with clamps; can accommodate flasks or bottles of different volumes (clamps not included).
• SPML — BS-010135-MK — Double-sided adhesive strips compatible with UP-168 platform (fits PSU-20i and ES-20/60, ES-20/80 Shakers-Incubators).
• TR-44/15 — BS-010135-LK — Adjustable angle test tube rack for UP-168.
• TR-21/50 — BS-010135-KK — Adjustable angle test tube rack for UP-168.
• FC-50 — BS-010126-MK — Clamp 50 ml (Ø50 mm) for UP-168.
• FC-100 — BS-010126-HK — Clamp 100 ml (Ø65 mm) for UP-168.
• FC-250 — BS-010126-JK — Clamp 250 ml (Ø85 mm) for UP-168.
• FC-500 — BS-010126-LK — Clamp 500 ml (Ø105 mm) for UP-168.
• FC-1000 — BS-010126-IK — Clamp 1000 ml (Ø130 mm) for UP-168.
• FC-2000 — BS-010126-NK — Clamp 2000 ml (Ø165 mm) for UP-168 (Max. - 200 rpm).

Operating conditions
The shaker is suitable for use in cold rooms and incubators. Operational ambient temperature range is +4°C to +40°C. External low-voltage power supply (12 V) provides electrical safety in humid environments.

Technical specifications

• Speed control range: 20–250 RPM (step 5 rpm) — maximum speed depends on load and vessel shape.
• Digital time setting: 1 min–96 hrs / non-stop (step 1 min).
• Timer sound signal: yes.
• Digital speed control: yes.
• Maximum continuous operation time: 168 h.
• Orbit: 20 mm.
• Display: LCD, 16 × 2 characters.
• Maximum load: 8 kg.
• Overall dimensions (W×D×H): 410 × 410 × 130 mm.
• Weight: 11.7 kg.
• Input current / power consumption: 12 V, 3.2 A / 40 W.
• External power supply: Input AC 100–240 V; 50/60 Hz; Output DC 12 V.
