Stainless steel PCR cabinet UVC/T-M-AR

doublewith UV irradiation

Overview

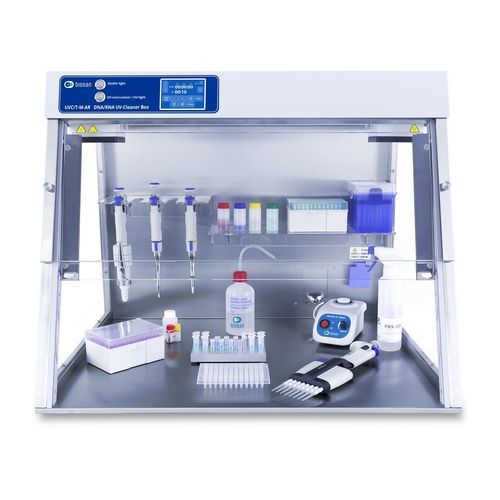

The UVC/T-M-AR is a benchtop PCR cabinet engineered to provide a contamination-controlled workspace for PCR setup and nucleic-acid workflows. The unit uses a dual UV decontamination system: an open 25W UV‑C surface lamp (253.7 nm) and a patented UV air recirculator for continuous internal air irradiation that processes the cabinet volume ~100×/h, enabling routine decontamination without exposing the operator to UV. A 3.5" glove-compatible touchscreen allows programmable UV cycles and lamp-life monitoring. An energy-efficient 8W LED daylight lamp provides bright task illumination while reducing energy use versus fluorescent lighting. Transparent glass side panels improve visibility and operator comfort.

Key features

• Open 25W ozone-free UV‑C lamp (253.7 nm), ~9,000 h lifetime
• Patented UV air recirculator: 20 m³/h, >99% internal decontamination per hour
• Automatic UV shut-off when protective screen is opened
• UV‑blocking panels: >96% UV protection for operator safety
• Stainless-steel work surface and rear wall; metal frame and UV-resistant materials
• Transparent glass side panels for enhanced visibility
• 3.5" glove-compatible touchscreen: timer, lamp status, maintenance alerts
• Built-in cable inlet and 1×internal socket (max. 1000 W)
• Low-noise fan system and energy-efficient operation (64 W)
• Compatible with optional T‑4 mobile table and LT height-adjustable desks

Specification (table)

• Digital display & lamp life timer: yes
• Display: 3.5", glove compatible
• Walls material: rear stainless steel; sides and front glass (EUROGLASS, Germany)
• Work surface material: stainless steel
• Open UV lamp: 1 × 25W bactericidal UV‑C (TUV 25W 1SL/25)
• UV radiation level: 18 mW/cm2/sec (λ = 253.7 nm), ozone-free
• Digital direct UV time setting: 1 min–24 hrs / non‑stop (1 min increment)
• UV recirculator: 1 × 25W (efficiency >99% per hour); airflow 20 m³/h
• Daylight lamp: 1 × LED‑8W
• Side panels thickness: 4 mm; upper front panel: 8 mm; screen: 4 mm
• Optical transmission: 95%; UV protection: >96% (UV‑protection film)
• Working area: 645 × 490 mm; opening (screen fully raised): 645 × 190 mm
• Safety: automatic open UV‑lamp switch off when screen is opened
• Power outlets inside: inlet for power cords and 1×built‑in socket, max. 1000 W
• Overall dimensions (W×D×H): 700 × 580 × 555 mm; Weight (net / gross): 27.4 / 36 kg
• Power consumption: 64 W; Nominal operating voltage: 100–240 V, 50/60 Hz
• Optional table: T‑4 (800 × 600 × 770 mm)
