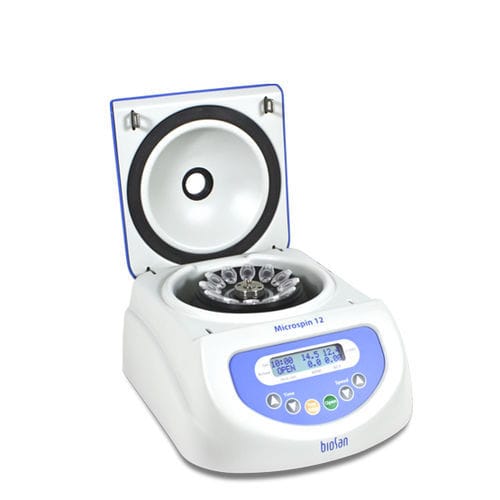

Biotechnology microcentrifuge Microspin 12

for chemical applicationslaboratorycompact

Description
High-speed mini-centrifuge Microspin 12 is a compact benchtop centrifuge designed for biomedical laboratories. It is intended for RNA/DNA extraction, sedimentation of biological components and biochemical or chemical analysis of micro-samples.

Display

• Centrifugation time
• Set and actual speed values
• Relative centrifugal force (RCF)

Design and features
A brushless motor ensures quiet operation at maximum speed and long service life. An angular aluminium rotor accommodates 12 Eppendorf microtubes and spin columns; the rotor includes a fixing lid. Constant airflow around the rotor reduces the risk of sample overheating. Metal protective inserts in the casing and lid, automatic imbalance shutdown and lid locking provide safe operation. Completion of centrifugation is indicated by an audible signal. External power supply allows operation in cold rooms (ambient temperature from +4°C to +40°C).

Standard set

• Built-in rotor MSR-12 (12 places for 1.5/2 ml microtubes) with protection lid MSL-SC
• A-02 adapter — 12 pieces for 0.2 ml microtubes
• A-05 adapter — 12 pieces for 0.5 ml microtubes

Technical specifications

• Speed range: 1,000–14,500 rpm (step 100 rpm)
• RCF range: 50–12,400 × g
• Digital time setting: 15 s – 30 min (step 15 s – 1 min)
• Timer sound signal: yes
• Rotor imbalance diagnostics (automatic stop, "IMBALANCE" warning): yes
• Acceleration time to 14,500 rpm: 20 s
• Deceleration time, max: 10 s
• Display: LCD, 2 × 16 characters
• Overall dimensions (W×D×H): 200 × 240 × 125 mm
• Weight: 3.5 kg
• Input current / power consumption: 24 V, 2.5 A / 60 W
• External power supply: Input AC 100–240 V 50/60 Hz, Output DC 24 V
