Biotechnology microcentrifuge FVL-2400N

laboratorycontinuous

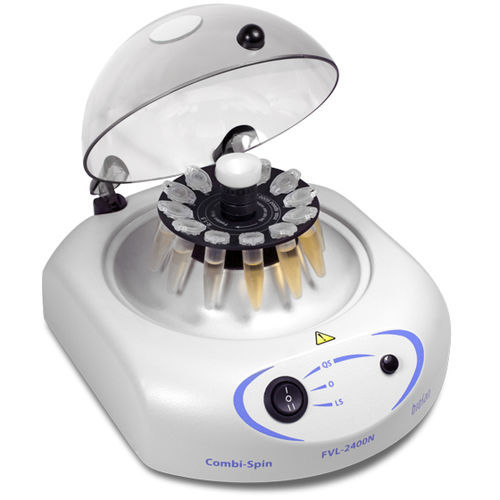

Description The minicentrifuge-vortex Combi-Spin FVL-2400N is designed for genetic engineering research and PCR diagnostics. It integrates centrifuge and vortex mixing modules on a common spin module to enable simultaneous mixing and separation of samples. Suitable for clinical, microbiological, biochemical and industrial biotechnology laboratories. FVL-2400N includes a safety mechanism that stops rotor motion when the lid is opened.

Included rotors / Supply

• R-1.5: rotor for 12 x 1.5 ml microtubes
• R-0.5/0.2: rotor for 12 x 0.5 ml and 12 x 0.2 ml microtubes

Available accessories (examples)

• R-0.5/0.2 — BS-010205-BK (rotor for 12 x 0.5 ml and 12 x 0.2 ml)
• R-1.5 — BS-010205-AK (rotor for 12 x 1.5/2 ml)
• R-2/0.5 — BS-010205-CK (rotor for 8 x 2/1.5 ml and 8 x 0.5 ml)
• R-2/0.5/0.2 — BS-010205-DK (rotor for 6 x 2/1.5 ml + 6 x 0.5 ml + 6 x 0.2 ml)
• SR-16 — BS-010202-AK (rotor for 2 x 8-section 0.2 ml microtube strips)
• SR-32 — BS-010205-FK (rotor for 4 x 8-section 0.2 ml microtube strips)

Technical specifications

• Rotation speed (fixed) (50 Hz): 2800 rpm
• Max. RCF (50 Hz): 500 x g
• Rotation speed (fixed) (60 Hz): 3500 rpm
• Max. RCF (60 Hz): 700 x g
• Continuous and impulse operation modes: yes
• Safety: stop at open lid
• Overall dimensions (W×D×H): 190 x 235 x 125 mm
• Weight: 1.7 kg
• Power consumption (230V / 120 V): 25 W (0.1 A) / 30 W (0.27 A)
• Nominal operating voltage: 120 or 230 V; 50/60 Hz
