Laboratory workstation UVT-B-AR

automaticbench-top

Overview

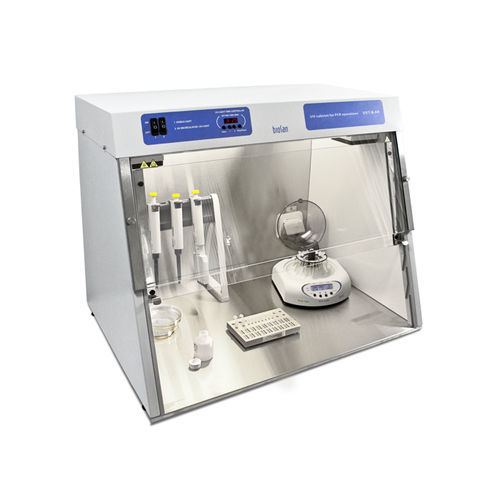

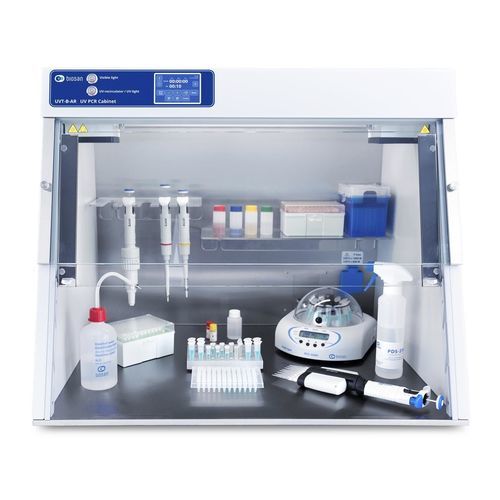

The Biosan UVT-B-AR is a benchtop DNA/RNA UV-cleaner workstation designed to create a contamination-free environment for PCR setup and nucleic acid workflows. It integrates a dual UV decontamination system: an open 25 W UV‑C lamp (253.7 nm) for surface and air disinfection (inactivates DNA/RNA contaminants, viruses and bacteria within 15–30 minutes) and a patented UV air recirculator for continuous internal air irradiation. The recirculator processes the cabinet volume approximately 100 times per hour, providing continuous internal decontamination without exposing the operator to UV. A 3.5" touchscreen enables intuitive programming of UV cycles and real-time lamp-life monitoring. An energy-efficient 8 W LED daylight lamp supplies bright workspace illumination while reducing consumption by about 50% versus fluorescent lighting.

Key features

• Ozone-free UV sterilization: 25 W UV-C lamp (253.7 nm), ~9,000 h lifespan
• Patented UV air recirculator: 20 m³/h, processes cabinet ~100×/h
• Safety controls: automatic UV shut-off when the protective screen is opened
• UV-blocking front panel: >96% UV protection
• Stainless-steel interior and metal frame; UV-resistant materials
• Digital touchscreen: timer control, lamp status and maintenance alerts
• Built-in power socket and cable inlet for operating small lab equipment (max. 1000 W)
• Low-noise fan and low overall energy consumption (64 W)
• Compatible with T-4 mobile table and LT-120/150/180 height-adjustable desks

Technical specifications

• Model: UVT-B-AR
• Open UV lamp: 1 × 25 W bactericidal UV-C (TUV 25W 1SL/25)
• UV radiation level: 18 mW / cm2 / sec (λ = 253.7 nm), ozone-free
• UV-recirculator: 1 × 25 W (declared efficiency >99% per 1 h), airflow 20 m³/h
• Direct UV exposure timer: digital 1 min–24 h / non‑stop (1 min increments)
• LED working lamp: 1 × 8 W (daylight)
• Display: 3.5" touchscreen, glove-compatible
• Walls material: rear — stainless steel; sides — steel with chemical-resistant powder coating; front — EUROGLASS
• Working surface material: stainless steel
• Working area: 645 × 490 mm; opening (screen fully raised): 645 × 190 mm
• Panel / screen thickness: sides 2 mm; upper front 8 mm; screen 4 mm; optical transmission 95%
• UV protection: >96% (UV-protection film)
• Internal power: inlet for power cords and 1 × built-in socket, max. 1000 W
• Overall dimensions (W × D × H): 700 × 580 × 555 mm
• Weight (net / gross): 28.8 / 37.5 kg
• Power consumption: 64 W; Nominal operating voltage: 100–240 V, 50/60 Hz
• Optional table: T-4 (800 × 600 × 770 mm)
