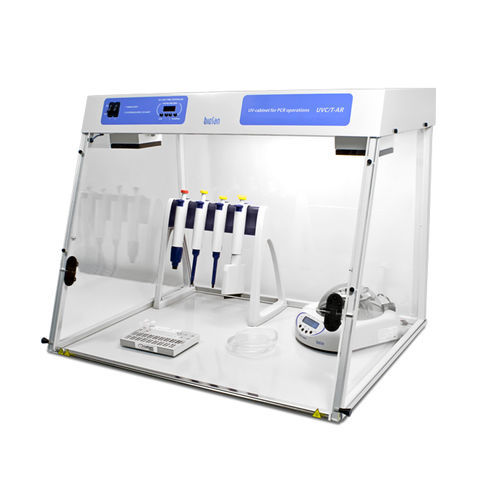

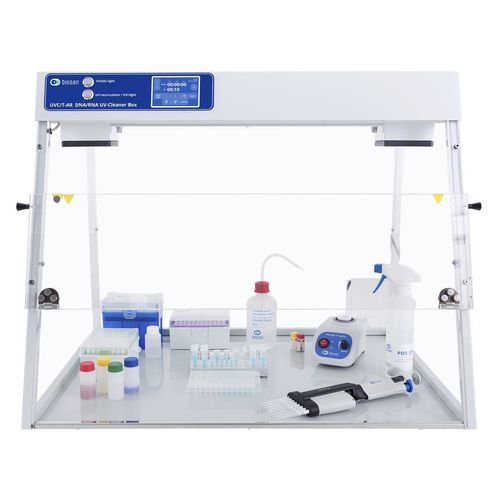

PCR cabinet with UV irradiation UVC/T-AR

Description
UVC/T-AR is a bench-top PCR cabinet designed to provide a contamination-controlled workspace for PCR setup and other nucleic-acid workflows. The unit combines an open UV‑C lamp (253.7 nm) for surface and air disinfection with an internal UV air recirculator that continuously decontaminates the cabinet volume without exposing the operator to direct UV radiation. The recirculator processes the cabinet volume approximately 100 times per hour to maintain low-contamination conditions.

Operation and illumination
A digital touch control panel (3.5" glove-compatible) allows programming of direct UV exposure from 1 min to 24 h and displays lamp life status. A low-power 8 W daylight LED provides bright, energy-efficient illumination of the working area. Transparent side and front panels improve visibility and operator comfort while providing >99.9% UV attenuation.

Main features

• Ozone-free high-density UV decontamination: open UV‑C lamp 25 W (253.7 nm), lamp life ≈ 9,000 h
• Flow-type UV air recirculator (patented): treated air flow ~20 m³/h, processes cabinet volume ≈100×/h
• Automatic UV shut-off when protective screen is opened
• UV-protective panels with >99.9% UV blocking (ALTUGLAS EX PMMA)
• Ergonomic metal framework and chemical‑resistant powder-coated work surface
• Integrated cable entry and optional T-4 mobile table (800×600×770 mm)
• Low noise operation and total power consumption 64 W

Specifications
Digital display and lamp life timer: +
Display: 3.5" glove-compatible
Wall material: Plexiglas (ALTUGLAS EX PMMA)
Work surface: steel with chemical‑resistant powder coating
Open UV lamp: 1 × 25 W bactericidal UV‑C (TUV 25W 1SL/25), 253.7 nm
UV radiation level: 18 mW/cm2/sec
Direct UV timer: 1 min–24 h / continuous (1 min increment)
UV recirculator: 1 × 25 W (efficiency >99% per hour), flow ~20 m³/h
Work light: 1 × LED‑8W daylight
Work area: 645 × 490 mm
Opening (fully raised screen): 645 × 165 mm
Optical transmission: 92% / UV protection: >99.90%
Overall dimensions (W×D×H): 720 × 535 × 555 mm
Net/Gross weight: 21.4 / 30 kg
Power consumption: 64 W
Supply voltage: 100–240 V, 50/60 Hz
Optional table: T-4 (800 × 600 × 770 mm)

• Model: UVC/T-AR
• Manufacturer: Biosan
• Application: PCR setup, DNA/RNA amplicon handling, contamination-sensitive workflows
