Dynamic agitator UIS-360

continuousfor liquidsmicrobiology

Overview

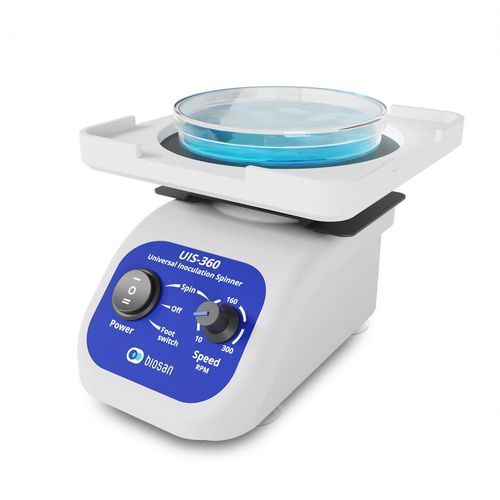

The UIS-360 Universal Inoculation Spinner is a laboratory plate-spreading device designed for controlled, uniform distribution of microbial samples on agar surfaces. It supports routine microbiology workflows and field use with a compact, low-power design. Adjustable speed 10–300 RPM and two platform options accommodate common Petri plate formats. Optional foot-switch and polycarbonate splash shield available.

Applications / Use it for

• Routine culturing and isolation of microorganisms
• Antimicrobial susceptibility testing (AST)
• Pathogen detection in clinical and research samples
• Epidemiology and outbreak investigation workflows
• Microbial contamination analysis in food and industrial products
• Quality control and sterility testing
• Environmental monitoring of soil, water and air samples
• R&D for antibiotics, probiotics and microbial physiology
• Teaching microbiological plating techniques

Key Features and Advantages

• Two platform choices: U-150 (square up to 125 × 125 mm and round Ø90/Ø105/Ø150 mm) or P-90 (round Ø90/Ø105 mm)
• Wide adjustable speed range 10–300 RPM for gentle to vigorous spreading
• Continuous rotation mode and optional foot-switch for hands-free on/off control
• Enhanced safety options: removable polycarbonate splash shield, non-slip rubber feet, automatic shutoff on foot-switch release
• Compact and portable: bench footprint ~170 × 190 mm, lightweight (~0.85 kg), can be powered from a 12 V DC power bank; nominal consumption 3.7 W
• Smooth, uniform rotation to improve plate-to-plate reproducibility

Specifications

• Speed control range: 10–300 RPM (adjustable)
• Operation modes: continuous rotation or foot-switch activation (on/off)
• Maximum continuous operation time: 168 h
• Plate compatibility: U-150 — square up to 125 × 125 mm and round Ø90, Ø105, Ø150 mm; P-90 — round Ø90, Ø105 mm
• Safety features: optional polycarbonate splash shield, non-slip rubber feet, automatic shutoff on foot-switch release
• Overall dimensions (W × D × H): 170 × 190 × 110 mm (without shield); 200 × 190 × 240 mm (with shield)
• Weight: ~0.85 kg
• Input current / power consumption: 12 V, 310 mA / 3.7 W
• External power supply: AC input 100–240 V, 50/60 Hz; DC output 12 V
