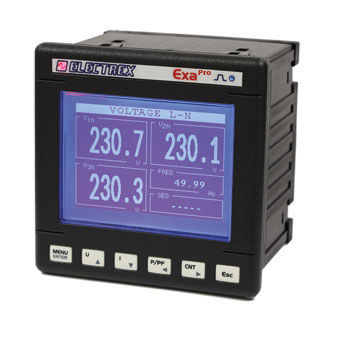

Hazardous environment analyzer PFAE9-10102-E00 EXA PRO 96

3-phase electrical networksfor single-phase electrical networksindustrial

Product Overview
Single- or three-phase energy analyzer designed for industrial and harsh environments. Measures harmonics and power quality parameters with high accuracy; connects via external CTs (../5A or ../1A, not included). Panel cut-out 96 × 96 mm, supply 230–240 VAC.

Main Functions

• Connection via CTs ../5A or ../1A (not included)
• Accuracy class 0.5S
• Measurement of THD and TDD on voltage and current
• Neutral current measurement
• Maximum and minimum voltage monitoring
• Maximum current and maximum power measurement
• Active energy measurement per phase
• Phase sequence detection and configurable phase settings

Operating and Alarm Features

• Four programmable operating timers
• Eight configurable alarms with support for complex logical conditions

Display and Indicators

• Graphical LCD display for measured values and menus
• Calibration status LED

Communications and Firmware

• Modbus‑RTU over RS485 communication
• Firmware remotely upgradeable; expandable via PUK codes for post‑installation feature upgrades

Mechanical and Electrical

• Panel mounting dimensions: 96 × 96 mm
• Power supply: 230–240 VAC

Standards

• Complies with EN 50470‑1 and EN 50470‑3

Technical specifications

• Model family: EXA PRO 96
• Product code: PFAE9-10102-E00
• Phase: Single/Three-phase
• Current input via CTs: ../5A or ../1A (CTs not included)
• Accuracy: Class 0.5S
• Measured parameters: THD, TDD, neutral current, Vmax, Vmin, Imax, maximum power, active energy per phase
• Phase sequence detection: Yes
• Timers: 4 programmable operating timers
• Alarms: 8 configurable alarms with complex logic support
• Display: Graphical LCD
• Indicators: Calibration LED
• Communications: Modbus‑RTU via RS485
• Firmware: Remotely upgradeable; expandable via PUK codes
• Panel cut-out / mounting: 96 × 96 mm
• Power supply: 230–240 VAC
• Compliance: EN 50470‑1, EN 50470‑3
