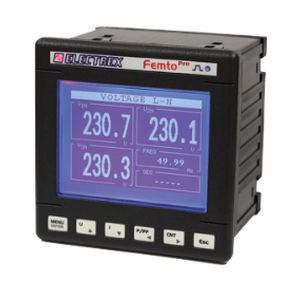

Signal analyzer PFA69-FB1Z2-EMF FEMTO PRO 96 F

monitoringfor electrical networks3-phase electrical networks

Overview
FEMTO PRO 96 F PFA69-FB1Z2-EMF is a Harmonic & Power Quality Energy Analyzer for single-/three-phase systems (up to 3 single-phase lines). Overall accuracy class 1 (with FEMTO PRO F + flexible split-core CTs). Designed for use with FCTS series split-core flexible CTs (not included); configurable current full scale up to 4000 A.

Measurement functions

• THD and TDD measurement on voltage and current
• Neutral current measurement
• Maximum and minimum voltage detection
• Maximum current and power detection
• Active energy per phase
• Real-time individual harmonic analysis up to the 31st order for 3 phase voltages and 3 line currents

Data logging and management

• Integrated datalogger storing 4 harmonic components
• Storage of total and per-phase energy counters
• Recording of average, minimum and maximum values for voltages, currents, powers and frequency
• Detection and logging of voltage events (interruptions, sags and swells)

Configuration and alarms

• Phase sequence detection and configuration
• Four operating time slots
• 8 configurable alarms, including complex logic combinations

Interfaces and integration

• Graphic LCD display
• Calibration LED
• Modbus-RTU communication over RS485
• SIO Bus port to integrate Milli Pro I/O and Milli Pro sensor expansion modules (I/O and/or environmental sensors)
• Firmware remotely upgradeable

Power supply and dimensions

• Supply voltage: 230-240 Vac
• Panel cutout/front dimension: 96×96 mm

Compliance
Compliant with EN 50470-1 and EN 50470-3.

Features / Technical specifications

• Product code: PFA69-FB1Z2-EMF
• Commercial name: FEMTO PRO 96 F
• Type: Harmonic & Power Quality Energy Analyzer (single-/three-phase, up to 3 single-phase lines)
• Overall accuracy class: Class 1 (FEMTO PRO F + flexible split-core CTs)
• Recommended CTs: FCTS series split-core flexible CTs (not included)
• Configurable current full scale: up to 4000 A
• Harmonic analysis: up to 31st order
• Datalogger: stores 4 harmonic components, energy counters, avg/min/max values
• Power quality events: interruptions, sags, swells
• Alarms: up to 8 configurable alarms, 4 operating time slots
• Interfaces: Modbus-RTU (RS485), SIO Bus port for expansion modules
• Display: Graphic LCD
• Firmware: remotely upgradeable
• Panel dimensions: 96 × 96 mm
• Supply: 230-240 Vac
• Standards: EN 50470-1, EN 50470-3
