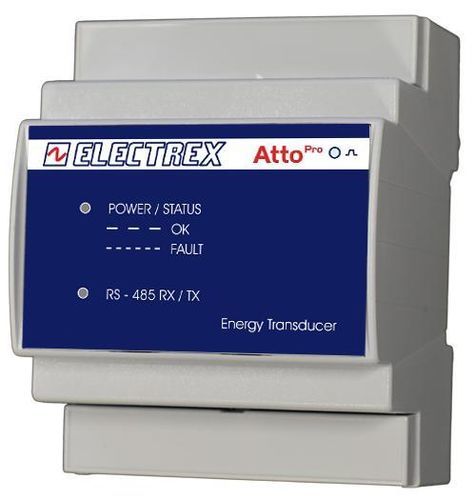

Monitoring analyzer PRA74-E0102-E00 ATTO PRO D4 ECT PLUGfor electrical networksAC energy networkelectric
Add to favorites
Compare this product
Characteristics
- Application domain
- monitoring, for electrical networks, 3-phase electrical networks, AC energy network, for single-phase electrical networks, electric
- Measured value
- power, voltage, energy
- Configuration
- DIN rail
- Other characteristics
- RS485
Description
Product overview
Single/three-phase energy analyzer (up to 3 single-phase lines). Accuracy class 0.5S. Requires external ECT current transformers (not included), for example 100A model code PFAE000-09.
Main features
Product code
Code: PRA74-E0102-E00
Documentation
Technical specifications
Single/three-phase energy analyzer (up to 3 single-phase lines). Accuracy class 0.5S. Requires external ECT current transformers (not included), for example 100A model code PFAE000-09.
Main features
- Measures THD and TDD on voltage and current
- Measures neutral current
- Measures maximum and minimum voltage
- Measures maximum current and power
- Measures active energy per phase
- Phase sequence detection and configuration
- Four operating timers
- Eight configurable alarms with support for complex logic conditions
- Calibration LED for energy, status LED, and RS485 communication LED
- Communication via Modbus-RTU over RS485
- Firmware remotely upgradeable and expandable through PUK codes for future upgrades even after installation
- DIN-rail mounting, 4 modules
- Installation via screw terminals
- Power supply: 230–240 VAC
- Complies with standards EN 50470-1 and EN 50470-3
Product code
Code: PRA74-E0102-E00
Documentation
- Datasheet Femto Pro - Atto Pro (Type: pdf)
Technical specifications
- Product type: Single/three-phase energy analyzer (up to 3 single-phase lines)
- Accuracy class: 0.5S
- Current transformers: external ECT (not included) — example 100A model code PFAE000-09
- Measured parameters: THD, TDD (voltage and current), neutral current, Vmax/Vmin, Imax, power, active energy per phase
- Phase detection: Phase sequence detection and configuration
- Timers: 4 operating timers
- Alarms: 8 configurable alarms including complex logic conditions
- Indicators: calibration LED for energy, status LED, RS485 communication LED
- Communication protocol: Modbus-RTU over RS485
- Firmware: remotely upgradeable; expandable via PUK codes
- Mounting: DIN-rail, 4 modules
- Connections: screw terminals
- Power supply: 230–240 VAC
- Standards: EN 50470-1, EN 50470-3
