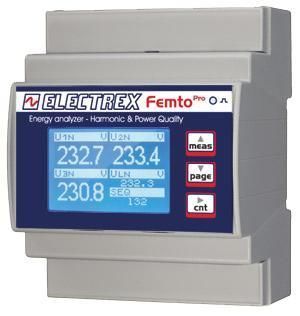

Monitoring analyzer PRA64-EH102-E00 FEMTO PRO D4 ECT

for electrical networks3-phase electrical networksfor single-phase electrical networks

Overview
Single/Three-Phase Energy Analyzer for up to three single-phase lines. Accuracy class 0.5S. Designed for measurement of harmonics and power quality parameters. External ECT current transformers required for current measurement (CTs not included) — example model: PFAE000-09 (100 A). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase.

Main features

• Single harmonic analysis up to the 31st order on three phase voltages and three line currents in real time
• Phase sequence detection and configuration
• Four programmable operating timers and eight configurable alarms with support for complex logic conditions
• Graphical LCD display and calibration LED
• Communication via Modbus-RTU over RS485
• Firmware remotely upgradeable; expandable via PUK codes for future functions
• DIN-rail mounting, 4 modules
• Connections via RJ45 and removable terminal blocks for simplified installation
• Power supply: 230–240 VAC
• Compliant with standards EN 50470-1 and EN 50470-3

Technical specifications

• Product type: Single/Three-Phase Energy Analyzer (up to 3 single-phase lines)
• Product code: PRA64-EH102-E00
• Accuracy class: 0.5S
• Current inputs: measures line currents and neutral current via external ECT current transformers (not included)
• Example external CT model: PFAE000-09 (100 A) — CTs not included
• Harmonic measurements: THD and TDD on voltage and current; single harmonic analysis up to the 31st order
• Measurements: max/min voltage, max current and power, active energy per phase
• Alarms & timers: 4 operating timers; 8 configurable alarms; support for complex logic conditions
• User interface: graphical LCD display; calibration LED
• Communication: Modbus-RTU over RS485
• Firmware: remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail, 4 modules
• Connections: RJ45 connectors and removable terminal blocks
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
