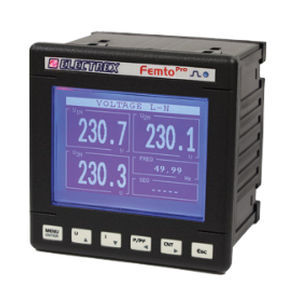

Network analyzer PFA69-FB102-EM0 FEMTO PRO 96 F H PQ LOG

industrialpower qualitypower

Overview
FEMTO PRO 96 F RS485 H PQ LOG ENERGY 230-240V. Code PFA69-FB102-EM0.

Functional summary
Single-/three-phase energy and power quality analyzer (up to 3 single-phase lines) with integrated datalogger and Modbus-RTU RS485 communication. Overall accuracy Class 1 when used with flexible split CTs (series FCTS).

Measurement and analysis

• Overall accuracy: Class 1 (with Femto Pro F + flexible CTs).
• Measurement of THD (Total Harmonic Distortion) and TDD on voltage and current.
• Neutral current measurement.
• Detection of maximum and minimum voltages.
• Detection of peak current and peak power.
• Active energy measurement per phase.
• Real-time single harmonic analysis up to the 31st order for three phase voltages and three line currents.

Datalogging and PQ events

• Integrated datalogger for total and per-phase energy counters.
• Recording of voltage events: outages, sags and swells.

Alarms and logic

• Four configurable operating times.
• Eight configurable alarms with support for complex logic.

Installation and peripherals

• Use with flexible split CTs series FCTS (CTs not included).
• Configurable nominal current up to 4000 A.
• Phase rotation detection and configuration.

Interfaces, display and maintenance

• Graphic LCD display.
• Calibration LED.
• Communication: Modbus-RTU over RS485.
• Firmware updatable remotely.
• Expandable via PUK codes for future functions.

Power, dimensions and compliance

• Supply: 230-240 Vac.
• Panel cutout/front dimensions: 96 × 96 mm.
• Conformity: EN 50470-1 and EN 50470-3.

Technical specifications

• Model: FEMTO PRO 96 F (Code PFA69-FB102-EM0).
• Application: Energy measurement, harmonics and power quality analysis in single-/three-phase configurations (up to 3 single-phase lines).
• Accuracy: Class 1 (with flexible CTs).
• CT support: Flexible split CTs series FCTS (not included), nominal up to 4000 A.
• Measured parameters: THD, TDD, line and neutral currents, phase voltages, active energy per phase, max/min voltage, current and power values.
• Harmonic analysis: Single harmonic components up to 31st order in real time.
• Datalogger: Stores total and per-phase energy counters and voltage events (outages, sags, swells).
• Alarms: 8 configurable alarms, 4 operating times.
• Display: Graphic LCD; calibration LED present.
• Communication: Modbus-RTU RS485.
• Firmware: Remotely updatable; future expansions via PUK codes.
• Panel dimensions: 96 × 96 mm.
• Supply voltage: 230-240 Vac.
• Standards: EN 50470-1, EN 50470-3.
