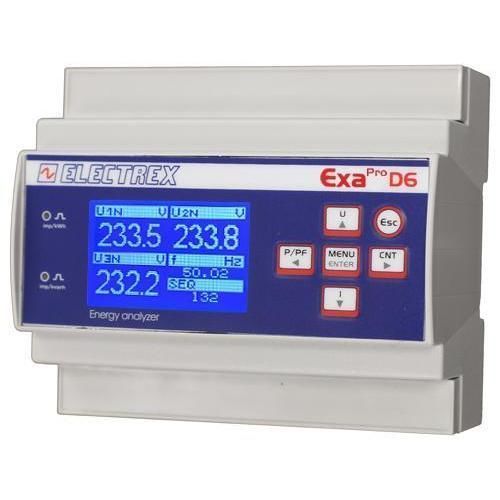

Monitoring analyzer PFAE6-1H102-E00 EXA PRO D6 5A CLAMP

for electrical networksAC energy network3-phase electrical networks

Product overview
The EXA PRO D6 family harmonic & energy analyzer designed for industrial and harsh environments. Provides real-time harmonic analysis and comprehensive power quality and energy measurements for three-phase systems. DIN-rail mounting, 6-module width, powered by 230–240 VAC.

Key functions and measurements

• Single harmonic analysis up to the 31st order on three-phase voltages and three line currents in real time
• Active energy measurement per phase
• Distortion metrics: THD (Total Harmonic Distortion) and TDD on voltage and current
• Neutral monitoring: neutral current measurement
• Extremes and peaks: maximum/minimum voltage, maximum current and maximum power
• Phase management: phase sequence detection and configuration
• Alarms and logic: eight configurable alarms with support for complex logic conditions
• Timers: four operating timers
• Display and indicators: graphical LCD display and calibration LED
• Communication: Modbus-RTU over RS485; firmware remotely upgradeable and expandable via PUK codes

Installation & mechanical

• DIN-rail mounting
• Size: 6 modules
• Power supply: 230–240 VAC
• Suitable for harsh environments

Compliance

• Standards: EN 50470-1 and EN 50470-3

Documentation
Product datasheet and installation manual (PDF) available from the manufacturer.

Product code
PFAE6-1H102-E00

Technical specifications

• Model family: EXA PRO D6
• Model: PFAE6-1H102-E00
• Accuracy class: 0.5S
• CT connection: ../5A or ../1A (CTs not included)
• Harmonic analysis: up to 31st order, real-time, three-phase voltages and three line currents
• Measured parameters: THD, TDD, neutral current, max/min voltage, max current, max power, active energy per phase
• Phase sequence detection and configuration
• Timers: four operating timers
• Alarms: eight configurable alarms with complex logic support
• Display: graphical LCD
• Indicator: calibration LED
• Communication protocol: Modbus-RTU (RS485)
• Firmware: remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail
• Width: 6 modules
• Power supply: 230–240 VAC
• Operating environment: designed for harsh environments
• Standards compliance: EN 50470-1, EN 50470-3
