Electrical network analyzer FEMTO PRO 96 F
3-phase electrical networksfor single-phase electrical networkspower

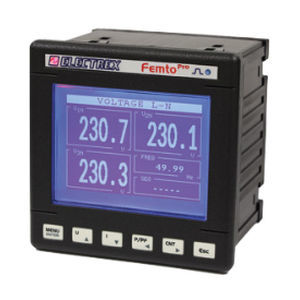

Electrical network analyzer - FEMTO PRO 96 F - ELECTREX - 3-phase electrical networks / for single-phase electrical networks / power
Electrical network analyzer - FEMTO PRO 96 F - ELECTREX - 3-phase electrical networks / for single-phase electrical networks / power
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
for electrical networks, 3-phase electrical networks, for single-phase electrical networks
Measured value
power, voltage, energy
Other characteristics
RS485, graphic, DIN 96x96

Description

Product code
Code PFA69-F0102-E00

Description
Mono-triphase energy analyzer (up to 3 single-phase lines) with overall accuracy class 1 (Femto Pro F + flexible CTs). Designed for use with FCTS series flexible split-core CTs (not included); configurable full scale up to 4000 A. Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, peak current and power, and active energy per phase. Detects and allows configuration of phase rotation. Four operating timers and 8 configurable alarms supporting complex logic.

Main features
  • Single-phase and three-phase measurement (up to 3 single-phase lines)
  • Overall accuracy class 1 (with flexible CTs)
  • Compatible with FCTS series flexible split-core CTs (CTs not included)
  • Configurable full scale up to 4000 A
  • THD and TDD measurement on voltage and current
  • Neutral current measurement
  • Detection of maximum and minimum voltage
  • Detection of peak current and peak power
  • Active energy measurement per phase
  • Phase rotation detection and configuration
  • Four operating timers
  • 8 configurable alarms with complex logic
  • Graphic LCD display
  • Calibration LED
  • Modbus-RTU RS485 communication
  • Firmware remotely upgradeable; future expansions via PUK codes
  • Panel cutout 96×96 mm
  • Supply 230-240 Vac
  • Compliant with EN 50470-1 and EN 50470-3

Available documents
Product sheet and installation instructions (pdf) available on the manufacturer's website.

Characteristics / Technical specifications
  • Type: Mono-triphase energy analyzer
  • Accuracy: Class 1 overall (with flexible CTs)
  • Measured voltages: voltage and associated parameters (including THD/TDD)
  • Measured currents: phase current and neutral current; configurable full scale up to 4000 A with appropriate CTs
  • Calculated parameters: active energy per phase, peak power, min/max voltage values
  • Alarms: 8 configurable alarms (complex logic supported)
  • Communication: Modbus-RTU via RS485
  • User interface: Graphic LCD display + calibration LED
  • Firmware: Remotely upgradeable; expansions via PUK codes
  • Panel dimensions: 96×96 mm (front)
  • Supply: 230-240 Vac
  • Standards: EN 50470-1, EN 50470-3
  • Accessories: Compatible with FCTS series flexible split-core CTs (not included)
