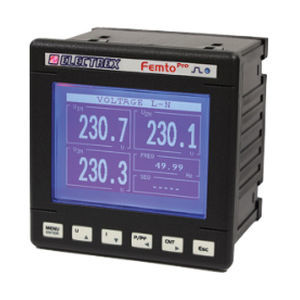

Monitoring analyzer FEMTO PRO 96 ECT 230-240V

for electrical networksAC energy network3-phase electrical networks

Description
Mono-tri-phase energy analyzer (up to 3 single-phase lines) with accuracy class 0.5S and support for external current transformers ECT (not supplied), e.g. 100 A (code PFAE000-09). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Phase rotation detection and configurable phase sequence. Four programmable operating time slots and 8 configurable alarms with support for complex logic. Graphic LCD display and calibration LED. Communication via Modbus-RTU RS485. Firmware remotely updatable and future expansions available via PUK codes. Front panel cutout 96 × 96 mm. Supply 230-240 Vac. Compliant with EN 50470-1 and EN 50470-3.

Product information
Code: PFA69-E0102-E00
Designation on page: FEMTO PRO 96 ECT RS485 230-240V

Features / Technical specifications

• Type: Mono-tri-phase energy analyzer (up to 3 single-phase lines)
• Accuracy class: 0.5S
• External CTs: supports external ECT current transformers (not included); example 100 A (code PFAE000-09)
• Measurements: THD and TDD on voltage and current; neutral current; max/min voltage; max current and power; active energy per phase
• Phase rotation: detection and configurable phase sequence
• Operating times: four configurable time slots
• Alarms: 8 configurable alarms with support for complex logic
• Display: graphic LCD
• Indicator: calibration LED
• Communication: Modbus-RTU RS485
• Firmware: remotely updatable; future expansions via PUK codes
• Front panel cutout: 96 × 96 mm
• Supply: 230-240 Vac
• Standards: compliant with EN 50470-1 and EN 50470-3
