Electrical network analyzer PFA69-FH102-E00 FEMTO PRO 96 F
3-phase electrical networkspower qualitypower

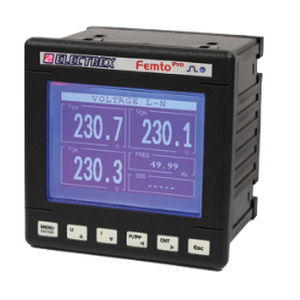

Electrical network analyzer - PFA69-FH102-E00 FEMTO PRO 96 F - ELECTREX - 3-phase electrical networks / power quality / power
Electrical network analyzer - PFA69-FH102-E00 FEMTO PRO 96 F - ELECTREX - 3-phase electrical networks / power quality / power
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
for electrical networks, 3-phase electrical networks
Measured value
harmonic, power quality, power, voltage, energy
Other characteristics
real-time, RS485, graphic, DIN 96x96

Description

Description
FEMTO PRO 96 F RS485 H 230-240V
  • Mono-/three-phase Harmonic & Energy Analyzer (up to 3 single-phase lines) with overall accuracy class 1 when used with flexible CTs (Femto Pro F + flexible CTs).
  • Insertion measurement using flexible split-core CTs FCTS series (CTs not included); configurable current full-scale up to 4000 A.
  • Measurement of THD and TDD on voltage and current, neutral current, max/min voltage, peak current and power, and active energy per phase.
  • Real-time single-harmonic analysis up to the 31st order for the 3 phase voltages and the 3 line currents.
  • Phase rotation detection and configurable phase sequence.
  • Four operating timers and 8 configurable alarms, including complex logic configurations.
  • Graphic LCD display.
  • Calibration LED indicator.
  • Modbus-RTU communication over RS485.
  • Remote firmware upgrade capable and future expansions via PUK codes.
  • Panel cut-out size 96 × 96 mm.
  • Supply voltage 230–240 Vac.
  • Compliant with EN 50470-1 and EN 50470-3 standards.


Main features
  • Real-time harmonic analysis up to the 31st order
  • THD and TDD measurement on voltage and current
  • Neutral current measurement and active energy per phase
  • Phase rotation detection (phase-sequence)
  • 8 configurable alarms with advanced logic
  • Graphic LCD display and calibration LED
  • Modbus-RTU over RS485
  • Remote firmware upgrade and expansions via PUK codes


Accessories note
Insertion measurement with flexible split-core CTs FCTS series (not included). Current full-scale configurable up to 4000 A.

Technical specifications
  • Product code: PFA69-FH102-E00
  • Designation: FEMTO PRO 96 F RS485 H
  • Type: Mono-/three-phase Harmonic & Energy Analyzer (up to 3 single-phase lines)
  • Overall accuracy: Class 1 (with flexible CTs)
  • Compatible current transformers: Flexible split-core CTs FCTS series (CTs not included)
  • Current full-scale: Configurable up to 4000 A
  • Electrical measurements: THD, TDD, voltage and current, neutral current, voltage max/min, peak current and power, active energy per phase
  • Harmonic analysis: Single harmonics up to 31st order in real time
  • Grid functions: Phase rotation detection and configuration
  • Timers & alarms: 4 operating timers; 8 configurable alarms with complex logic
  • User interface: Graphic LCD display; calibration LED
  • Communication: Modbus-RTU over RS485
  • Firmware: Remote upgradeable; expansions via PUK codes
  • Panel dimensions: 96 × 96 mm (front panel)
  • Supply: 230–240 Vac
  • Standards: Compliant with EN 50470-1 and EN 50470-3
  • Accessories: Flexible split-core CTs FCTS series (not included)
