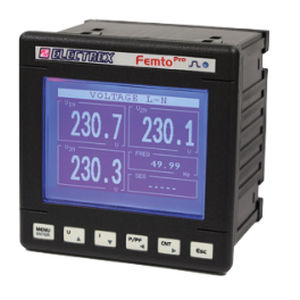

Monitoring analyzer PFA69-EB102-EM0 FEMTO PRO 96 ECT

for electrical networkspower qualitypower

Description
FEMTO PRO 96 ECT RS485 H PQ LOG ENERGY 230-240V (Cod. PFA69-EB102-EM0) is a harmonic and power quality energy analyzer for single- and three-phase systems (up to 3 single-phase lines) with accuracy class 0.5S. Supports external current transformers (ECT) — not included (e.g. 100 A, code PFAE000-09). Measures THD and TDD on voltage and current, neutral current, max/min voltage, peak current and power, and active energy per phase. Real-time single-harmonic analysis up to the 31st order on three phase voltages and three line currents. Integrated datalogger records total and per-phase energy counters and voltage events (interruptions, sags, swells) for power quality monitoring.

Product code
Cod. PFA69-EB102-EM0

Features / Technical specifications

• Commercial name: FEMTO PRO 96
• Type: Harmonic & Power Quality Energy Analyzer (single- and three-phase, up to 3 single-phase lines)
• Accuracy class: 0.5S
• External CTs: support for external ECT (not included) — e.g. 100 A (code PFAE000-09)
• Measurements: THD and TDD on voltage and current; neutral current; max/min voltage; peak current; peak power; active energy per phase
• Harmonic analysis: single harmonics up to 31st order on 3 phase voltages and 3 line currents in real time
• Datalogger: integrated storage for total and per-phase energy counters; logging of voltage events (interruptions, sags, swells)
• Phase rotation: detection and configurable phase sequence
• Operating times: 4 configurable time slots
• Alarms: 8 configurable alarms with advanced logic
• User interface: graphic LCD display
• Indicators: calibration LED
• Communication: Modbus-RTU over RS485
• Firmware: remotely updatable; future expansions via PUK codes
• Front panel size: 96 × 96 mm
• Power supply: 230–240 Vac
• Standards: compliant with EN 50470-1 and EN 50470-3
