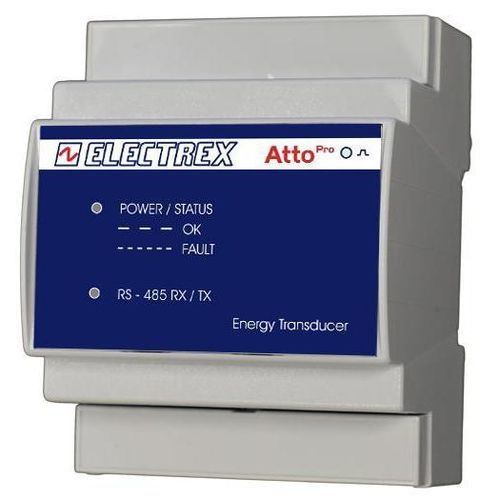

Electrical network analyzer PFA74-10102-E00 ATTO PRO D4 5A CLAMP

powervoltageenergy

Overview
Single/Three-Phase energy analyzer (up to 3 single-phase lines) with accuracy class 0.5S. Connection via CTs ../5A or ../1A (CTs not included). DIN-rail mounting, 4 modules. Installation via screw terminals.

Measurements and Functions

• Measures THD and TDD on voltage and current
• Measures neutral current
• Measures maximum and minimum voltage
• Measures maximum current and power
• Measures active energy per phase
• Includes phase sequence detection and configuration

Alarms, Timers and Indicators

• Four operating timers
• Eight configurable alarms with support for complex logic conditions
• Calibration LED for energy
• Status LED
• LED for RS485 communication

Communication and Firmware
Communication via Modbus-RTU over RS485. Firmware is remotely upgradeable and expandable through PUK codes for future upgrades after installation.

Mechanical and Installation
DIN-rail mounting, 4 modules. Screw terminal connections for line and control wiring.

Power and Standards
Power supply: 230–240 VAC. Complies with standards EN 50470-1 and EN 50470-3.

Technical characteristics / specifications

• Model type: Single/Three-Phase energy analyzer (up to 3 single-phase lines)
• Accuracy class: 0.5S
• Current transformer (CT) connection: ../5A or ../1A (CTs not included)
• Measurements: THD, TDD (voltage & current), neutral current, max/min voltage, max current, power, active energy per phase
• Phase sequence detection and configuration
• Timers: 4 operating timers
• Alarms: 8 configurable alarms with complex logic support
• LEDs: energy calibration LED, status LED, RS485 communication LED
• Communication protocol: Modbus-RTU over RS485
• Firmware: remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail, 4 modules
• Terminals: screw terminals
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
• Product code: PFA74-10102-E00
