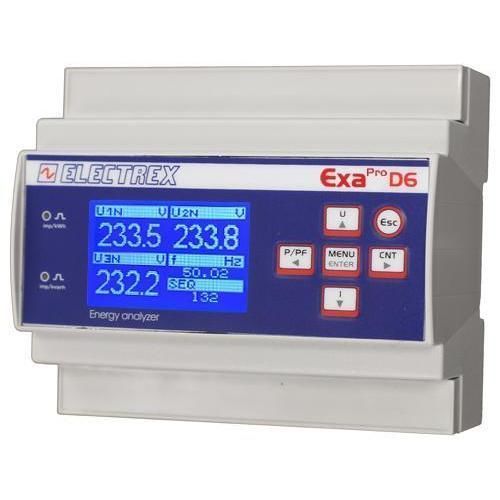

Electrical network analyzer PFAE6-10102-E00 EXA PRO D6 5A CLAMP

3-phase electrical networksfor single-phase electrical networksindustrial

Product overview
Single- and three-phase energy analyzer designed for harsh industrial environments. Connects via external CTs ../5A or ../1A (CTs not included). Accuracy class 0.5S.
Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase.
Includes phase sequence detection and configuration.
Provides four operating timers and eight configurable alarms, with support for complex logical conditions.
Equipped with a graphical LCD display and a calibration LED.
Communication via Modbus-RTU RS485. Firmware is remotely upgradeable and expandable through PUK codes for future feature additions even after installation.
DIN-rail mounting, occupies 6 modules. Power supply: 230-240 VAC. Complies with standards EN 50470-1 and EN 50470-3.

Technical specifications

• Single/three-phase measurement
• Connection via CTs: ../5A or ../1A (CTs not included)
• Accuracy class: 0.5S
• Measurements: THD and TDD on voltage and current; neutral current; maximum and minimum voltage; maximum current and power; active energy per phase
• Phase sequence detection and configuration
• Timers & alarms: 4 operating timers; 8 configurable alarms; supports complex logic conditions
• Display: graphical LCD
• Indicator: calibration LED
• Communication: Modbus-RTU RS485
• Firmware: remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail, 6 modules
• Power supply: 230-240 VAC
• Standards: EN 50470-1, EN 50470-3
