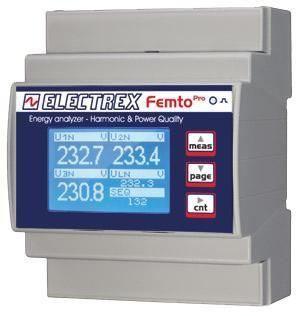

Electrical network analyzer PFA64-EH102-E00 FEMTO PRO D4 ECT CLAMP

AC energy network3-phase electrical networksfor single-phase electrical networks

Overview
Single/Three-Phase Energy Analyzer (up to 3 single-phase lines). Accuracy class 0.5S. Supports external ECT clamp-type current transformers (not included), e.g. 100A model code PFAE000-09. Performs single harmonic analysis up to the 31st order on the three phase voltages and three line currents in real time. Communication via Modbus-RTU RS485. Firmware remotely upgradeable and expandable through PUK codes for future features.

Key functions and measurements

• Measures THD and TDD on voltage and current
• Measures neutral current
• Records maximum and minimum voltage
• Records maximum current and maximum power
• Measures active energy per phase
• Single harmonic analysis up to the 31st order on three phase voltages and three line currents (real time)
• Phase sequence detection and configuration
• Four operating timers
• Eight configurable alarms with support for complex logic conditions

User interface and installation

• Graphical LCD display
• Calibration LED
• DIN-rail mounting, 4 modules
• Installation via screw terminals
• Power supply: 230–240 VAC

Compliance
Complies with standards EN 50470-1 and EN 50470-3.

Technical specifications

• Product type: Single/Three-Phase Energy Analyzer (up to 3 single-phase lines)
• Example external CT model: 100A model code PFAE000-09 (ECTs not included)
• Accuracy class: 0.5S
• Harmonic analysis: single harmonic analysis up to the 31st order (real time)
• Measured parameters: THD, TDD (voltage & current), neutral current, max/min voltage, max current, max power, active energy per phase
• Phase functions: phase sequence detection and configuration
• Timers & alarms: 4 operating timers; 8 configurable alarms with complex logic support
• Display: graphical LCD; calibration LED
• Communications: Modbus-RTU via RS485
• Firmware: remotely upgradeable and expandable via PUK codes
• Mounting: DIN-rail, 4 modules
• Connections: screw terminal installation
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
