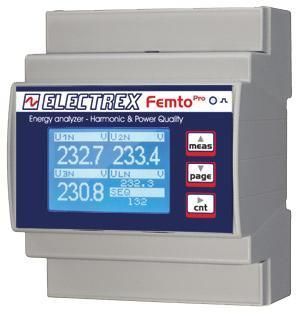

Monitoring analyzer PFA64-1B1Z2-EMF FEMTO PRO D4 5A CLAMP

for electrical networksAC energy networkfor networks

Product overview
Harmonic & Power Quality Energy Analyzer for single and three-phase installations (up to 3 single-phase lines) with accuracy class 0.5S. Connects via external CTs (../5A or ../1A, not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltages, maximum current and power, and active energy per phase. Performs real-time single harmonic analysis up to the 31st order on three phase voltages and three line currents.

Features

• Integrated datalogger for recording four harmonic components.
• Total and per-phase energy counters.
• Recording of average, minimum and maximum values of voltage, current, power and frequency.
• Records and stores voltage events (interruptions, sags and swells) for power quality analysis.
• Phase sequence detection and configurable phase orientation.
• Four operating timers and eight configurable alarms with support for complex logic conditions.
• Graphical LCD display and calibration LED.
• Communication via Modbus-RTU over RS485.
• SIO Bus port for integration with Milli Pro I/O and Milli Pro Sensor expansion modules (additional inputs/outputs and environmental sensors).
• Firmware remotely upgradeable and expandable via PUK codes for future features.
• DIN-rail mounting, 4 modules; screw terminal connections for installation.
• Power supply: 230–240 VAC.
• Compliance: EN 50470-1 and EN 50470-3.

Commercial name
FEMTO PRO D4

Product code
PFA64-1B1Z2-EMF

Technical specifications

• Type: Harmonic & Power Quality Energy Analyzer (single/three-phase, up to 3 single-phase lines).
• Accuracy class: 0.5S.
• Current transformers: compatible with ../5A or ../1A CTs (CTs not included).
• Harmonic analysis: single harmonic analysis up to 31st order for three phase voltages and three line currents in real time.
• Measurements: THD and TDD on voltage and current; neutral current; max/min voltage; max current and power; active energy per phase.
• Datalogger: records four harmonic components, total and per-phase energy, average/min/max of voltage, current, power and frequency.
• Event logging: records voltage events including interruptions, sags and swells.
• Alarms and timers: 4 operating timers; 8 configurable alarms with complex logic support.
• Display and indicators: graphical LCD; calibration LED.
• Communications: Modbus-RTU over RS485; SIO Bus for expansion modules.
• Firmware: remotely upgradeable and expandable via PUK codes.
• Mounting: DIN-rail, 4 modules; screw terminal connection.
• Power supply: 230–240 VAC.
• Standards: EN 50470-1, EN 50470-3.
