Current Transformer (CT) analyzer PFA64-1H102-E00 PFA64-1H102-E00 FEMTO PRO D4 5A CLAMP

monitoringfor electrical networksindustrial

Product name

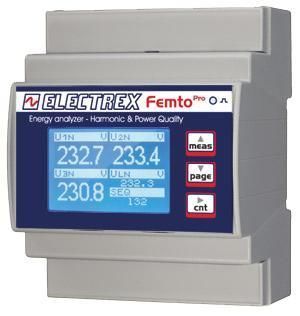

PFA64-1H102-E00 FEMTO PRO D4 5A clamp RS485 230-240V

Description
Compact harmonic and power-quality energy analyzer for single- and three-phase systems (up to 3 single-phase lines) with accuracy class 0.5S. Designed for current transformer (CT) clamp connection (../5A or ../1A; CTs not included). Measures THD and TDD on voltage and current, neutral current, Vmax/Vmin, Imax, Pmax and active energy per phase. Performs real-time single-harmonic analysis up to the 31st order on three phase voltages and three line currents. Includes phase sequence detection and configuration, four operating timers and eight configurable alarms supporting complex logic conditions. Graphical LCD display and calibration LED. Communication via Modbus-RTU over RS485. Firmware remotely upgradeable and expandable via PUK codes. DIN-rail mounting (4 modules) with screw terminal installation. Power supply: 230–240 VAC. Complies with standards EN 50470-1 and EN 50470-3.

Key features

• Harmonic and power quality analysis up to 31st harmonic (real-time single-harmonic analysis)
• Measures THD and TDD on both voltage and current
• Neutral current measurement
• Maximum and minimum voltage monitoring (Vmax/Vmin)
• Maximum current and power monitoring (Imax, Pmax)
• Active energy measurement per phase
• Phase sequence detection and configuration
• Four operating timers
• Eight configurable alarms with support for complex logic
• Graphical LCD display and calibration LED
• Modbus-RTU communication over RS485
• Firmware remotely upgradeable; expandable via PUK codes
• DIN-rail mounting (4 modules) with screw terminal installation
• Power supply: 230–240 VAC

Technical specifications

• Product family: FEMTO PRO D4
• Manufacturer code: PFA64-1H102-E00
• Type: Harmonic & Power Quality Energy Analyzer (single/three-phase, up to 3 single-phase lines)
• Accuracy class: 0.5S
• CT connection: clamp version for ../5A (also compatible with ../1A; CTs not included)
• Harmonic analysis: up to 31st order (single-harmonic real-time analysis)
• Measured parameters: THD, TDD, neutral current, Vmax, Vmin, Imax, Pmax, active energy per phase
• Alarms: 8 configurable alarms; supports complex logic
• Timers: 4 operating timers
• Display: graphical LCD; calibration LED
• Communication: Modbus-RTU over RS485
• Firmware: remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail, 4 modules; screw terminal installation
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3

Applications

• Industrial energy monitoring and power quality management
• Energy audits and sub-metering in commercial sites
• Renewable energy installations and inverters monitoring
• Utilities, switchgear panels and control rooms
• Pre-compliance testing and harmonics diagnosis

Downloads and documentation
Datasheets, wiring diagrams and installation manuals available in PDF from the manufacturer/distributor website.
