Monitoring analyzer PFAE6-1B102-EM0 EXA PRO D6 5A CLAMP
for electrical networksindustrialpower quality

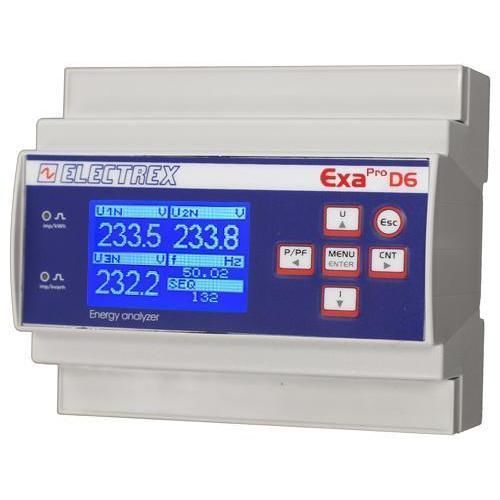

Monitoring analyzer - PFAE6-1B102-EM0 EXA PRO D6 5A CLAMP - ELECTREX - for electrical networks / industrial / power quality
Monitoring analyzer - PFAE6-1B102-EM0 EXA PRO D6 5A CLAMP - ELECTREX - for electrical networks / industrial / power quality
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, for electrical networks, industrial
Measured value
spectrum, power quality, power, voltage, energy
Configuration
DIN rail
Detector type
FFT
Protection level
heavy-duty
Other characteristics
real-time, RS485, with data logger, data acquisition, graphic, with fault recorder

Description

Overview
Harmonic & Power Quality energy analyzer suitable for heavy-duty industrial environments. Accuracy class 0.5S. Current insertion via CT ../5A or ../1A (not included). Measures THD and TDD on voltage and current, neutral current, maximum and minimum voltage, maximum current and power, and active energy per phase. Real-time single harmonic analysis up to the 31st order for 3 phase voltages and 3 line currents. Integrated datalogger for energy counters (total and per phase) and voltage event recording (interruptions, dips and swells). Phase rotation detection and configuration. Four configurable operating time windows and 8 configurable alarms with support for complex logic. Graphic LCD display, calibration LED. Modbus-RTU on RS485. Remote firmware update and future expansions via PUK codes.

Mechanical and power
DIN-rail mounting, 6 modules. Supply voltage 230-240 Vac. Compliant with EN 50470-1 + EN 50470-3.

Product code
Code: PFAE6-1B102-EM0

Technical features / specifications
  • Type: Harmonic & Power Quality energy analyzer
  • Accuracy class: 0.5S
  • Current insertion: via CT (../5A or ../1A) — CTs not included
  • Main measurements: THD and TDD on voltage and current, neutral current, Vmax/Vmin, Imax, Pmax, active energy per phase
  • Harmonic analysis: single harmonics up to 31st order for 3 phase voltages and 3 line currents in real time
  • Datalogger: stores energy counters (total and per phase) and voltage events (interruptions, dips, swells)
  • Phase rotation: detection and configurable phase sequence
  • Operating times: 4 configurable time windows
  • Alarms: 8 configurable alarms with support for complex logic
  • Interface: graphic LCD display
  • Indicators: calibration LED
  • Communication: Modbus-RTU on RS485
  • Firmware: remotely updatable; support for future expansions via PUK codes
  • Installation: DIN-rail, 6 modules
  • Power supply: 230-240 Vac
  • Standards: compliant with EN 50470-1 + EN 50470-3
  • Reference: PFAE6-1B102-EM0
