Electrical network analyzer PFA69-F0102-E00 FEMTO PRO 96 F
AC energy network3-phase electrical networksfor single-phase electrical networks

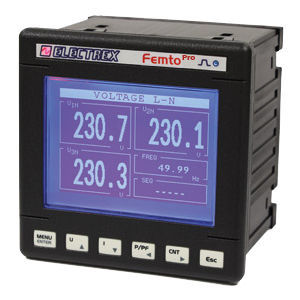

Electrical network analyzer - PFA69-F0102-E00 FEMTO PRO 96 F - ELECTREX - AC energy network / 3-phase electrical networks / for single-phase electrical networks
Electrical network analyzer - PFA69-F0102-E00 FEMTO PRO 96 F - ELECTREX - AC energy network / 3-phase electrical networks / for single-phase electrical networks
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
for electrical networks, 3-phase electrical networks, AC energy network, for single-phase electrical networks, industrial
Measured value
power, voltage, energy
Other characteristics
RS485, graphic, DIN 96x96

Description

Product overview
Single-/three-phase energy analyzer (up to 3 single-phase lines) with overall accuracy Class 1 when combined with Femto Pro F and flexible CTs. Connection via FCTS series flexible split-core CTs (CTs not included). Configurable full scale up to 4000 A.

Measured parameters and functions
  • Measures THD and TDD on voltage and current
  • Neutral current measurement
  • Maximum and minimum voltage measurement
  • Maximum current and power measurement
  • Active energy per phase
  • Phase sequence detection and configuration

Alarms, timers and display
  • Four operating timers
  • Eight configurable alarms including support for complex logic conditions
  • Graphical LCD display
  • Calibration LED indicator

Communication, firmware and upgrades
Communication via Modbus-RTU over RS485. Firmware remotely upgradeable and expandable via PUK codes to enable future feature additions after installation.

Mounting, power and standards
Panel mounting dimensions: 96 × 96 mm. Power supply: 230–240 VAC. Complies with standards EN 50470-1 and EN 50470-3.

Documents available (types)
  • Product datasheet Femto Pro - Atto Pro (Type: pdf)
  • Installation instructions Exa - Femto Pro 96 RS485 (Type: pdf)

Technical specifications
  • Code: PFA69-F0102-E00
  • Commercial name: FEMTO PRO 96 F
  • Type: Single/Three-Phase energy analyzer (up to 3 single-phase lines)
  • Overall accuracy: Class 1 (with Femto Pro F + flexible CTs)
  • Connection: FCTS series flexible split-core CTs (CTs not included)
  • Configurable full scale: up to 4000 A
  • Measured quantities: THD, TDD (voltage & current), neutral current, max/min voltage, max current, max power, active energy per phase
  • Phase sequence: detection and configurable
  • Timers: 4 operating timers
  • Alarms: 8 configurable alarms with complex logic support
  • Display: Graphical LCD
  • Indicators: Calibration LED
  • Communication: Modbus-RTU over RS485
  • Firmware: Remote upgradeable; expandable via PUK codes
  • Panel mounting dimensions: 96 × 96 mm
  • Power supply: 230–240 VAC
  • Standards: EN 50470-1, EN 50470-3
