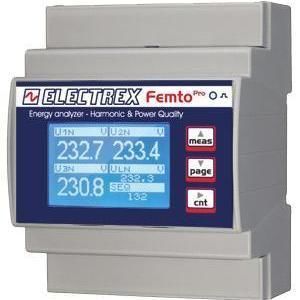

Monitoring analyzer PRA64-EB1Z2-EMF FEMTO PRO D4 ECT PLUG

for electrical networksindustrialpower

Product overview
Harmonic & Power Quality energy analyzer for single- and three-phase systems (up to 3 single-phase lines). Accuracy class 0.5S; designed for use with external ECT current transformers (not included). Real-time single-harmonic analysis up to the 31st order on three phase voltages and three line currents. Integrated datalogger, event recorder for voltage interruptions/sags/swells, phase sequence detection, four timers and eight configurable alarms. Graphical LCD and calibration LED. Communication via Modbus-RTU (RS485) and SIO Bus for Milli Pro expansions. DIN-rail mount, 4 modules. Power supply 230–240 VAC.

Main functions

• Measures THD and TDD on voltage and current
• Measures neutral current, maximum/minimum voltage, maximum current and power
• Active energy measurement per phase and total energy counters
• Single harmonic analysis up to 31st order in real time
• Integrated datalogger for harmonic components and statistical values (avg/min/max)
• Records voltage events: interruptions, sags and swells
• Phase sequence detection and configuration
• 4 operating timers and 8 configurable alarms with complex logic support
• Graphical LCD display and calibration LED
• Remote firmware upgradeable via PUK codes

Technical specifications

• Product code: PRA64-EB1Z2-EMF
• Model: FEMTO PRO D4
• Type: Harmonic & Power Quality Energy Analyzer (single/three-phase, up to 3 single-phase lines)
• Accuracy class: 0.5S
• External current transformers: ECT required (not included), example 100 A code PFAE000-09
• Harmonic analysis: single-harmonic up to 31st order on 3 phase voltages and 3 line currents (real time)
• Measured parameters: THD, TDD, voltage, current, neutral current, power, active energy, avg/min/max values, frequency
• Datalogger: harmonic components, total and per-phase energy counters, statistical values
• Event recording: voltage interruptions, sags, swells
• Timers & alarms: 4 timers; 8 configurable alarms with complex logic
• Communication: Modbus-RTU (RS485); SIO Bus for Milli Pro I/O and Milli Pro Sensor modules
• Display: graphical LCD; indicator: calibration LED
• Firmware: remotely upgradeable and expandable via PUK codes
• Mounting: DIN-rail, 4 modules
• Connections: RJ45 connectors and removable terminal blocks
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
