Monitoring analyzer PFA64-EH102-E00 FEMTO PRO D4 ECT CLAMP H

for electrical networksAC energy network3-phase electrical networks

Product overview

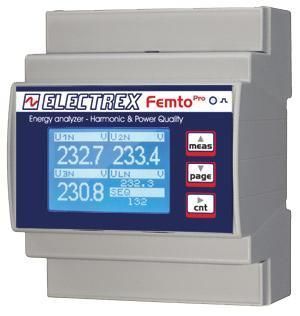

Single/three-phase energy analyzer for up to three single-phase lines. Accuracy class 0.5S. Designed for harmonic and power quality monitoring with external ECT current transformers (not included), example CT model PFAE000-09 (100 A). Real-time measurements include THD/TDD, neutral current, max/min voltages, peak current and power, and active energy per phase.

Technical specifications

• Type: Single/three-phase energy analyzer (up to 3 single-phase lines)
• Accuracy class: 0.5S
• Current transformers: External ECT (not included); example: PFAE000-09 (100 A)
• Harmonic analysis: single-harmonic up to 31st order on 3 phase voltages and 3 line currents in real time
• Display: Graphical LCD and calibration LED
• Mounting: DIN-rail, 4 modules
• Connections: Screw terminals
• Power supply: 230–240 VAC
• Standards: EN 50470-1 and EN 50470-3

Key functions

• Measures THD and TDD on voltage and current
• Neutral current measurement
• Detection of maximum and minimum voltages
• Recording of maximum current and power
• Active energy measurement per phase
• Phase sequence detection and configurable phase settings
• Single-harmonic analysis up to the 31st order
• 4 programmable operating timers
• 8 configurable alarms with support for complex logic conditions

Connectivity & firmware

• Communication: Modbus-RTU over RS485
• Firmware: Remotely upgradeable; expandable via PUK codes for future features

Notes
External ECT current transformers are required for current measurement and are not included in the package. Example CT model: PFAE000-09 (100 A).
