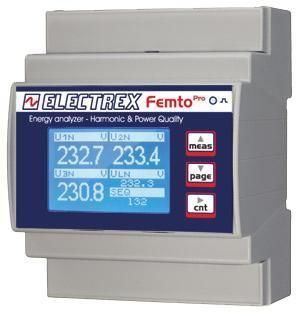

Monitoring analyzer PFA64-1B102-EM0 FEMTO PRO D4 5A CLAMP

for electrical networkspowervoltage

Overview
Harmonic & Power Quality energy analyzer for single- and three-phase systems (up to 3 single-phase lines). Accuracy class 0.5S. Current input via CTs ../5A or ../1A (CTs not included).

Measurements

• THD and TDD measurement on voltage and current
• Neutral current measurement
• Maximum and minimum voltage monitoring
• Maximum current and maximum power monitoring
• Active energy measurement per phase
• Single-harmonic analysis up to the 31st order on three phase voltages and three line currents in real time

Data Logging & Events
Integrated datalogger records total and per-phase energy counters and logs voltage events (interruptions, sags, swells) for power quality analysis.

Functions & Alarms

• Phase sequence detection and configuration
• Four configurable operating timers
• Eight configurable alarms with support for complex logic conditions

User Interface & Communication
Graphical LCD display and calibration LED. Communication via Modbus-RTU over RS485. Firmware remotely upgradeable; expandable via PUK codes for future features.

Installation & Power
DIN-rail mounting (4 modules). Screw-terminal connections. Power supply: 230–240 VAC.

Compliance
Compliant with standards EN 50470-1 and EN 50470-3.

Product code
Product code: PFA64-1B102-EM0

Technical specifications

• Product type: Harmonic & Power Quality Energy Analyzer
• Applicable systems: Single-phase and three-phase (up to 3 single-phase lines)
• Accuracy class: 0.5S
• Current input: via CTs ../5A or ../1A (CTs not included)
• Harmonic analysis: single-harmonic up to 31st order (real time)
• Measured parameters: THD, TDD, neutral current, Vmax, Vmin, Imax, Pmax, active energy per phase
• Datalogger: total and per-phase energy counters; voltage event logging (interruptions, sags, swells)
• Timers: 4 operating timers
• Alarms: 8 configurable alarms with complex logic support
• Display: graphical LCD + calibration LED
• Communication: Modbus-RTU over RS485
• Firmware: remotely upgradeable; expandable via PUK codes
• Mounting: DIN-rail, 4 modules
• Installation: screw terminals
• Power supply: 230–240 VAC
• Standards: EN 50470-1, EN 50470-3
