Touchpad for medical applications KH-MA90V2-TP

industrialfor businessfor marine applications

Product overview

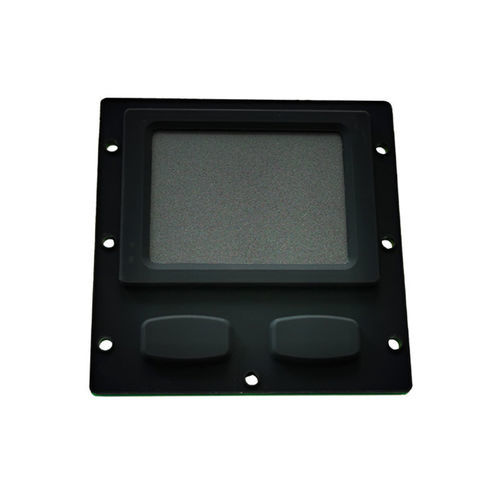

The KH-MA90V2-TP by CNKHTECH is a panel-mount silicone touch mouse engineered for reliable external pointing in demanding environments. The dynamically sealed silicone rubber surface delivers precise cursor control while two raised function buttons provide tactile feedback.

Front-panel IP65 protection and wide operating temperature range make it suitable for industrial control panels, medical consoles, marine navigation stations and outdoor kiosks.

Features

• Dynamically sealed silicone rubber touch surface
• IP65 waterproof and dustproof (front panel)
• Panel-mount design, 90 × 90 mm bezel
• Two function buttons (Left, Right)
• USB and PS/2 interfaces — plug and play
• Wide operating temperature and high humidity tolerance

Technical specifications

• Model: KH-MA90V2-TP
• Brand: CNKHTECH
• Origin: China
• Certifications: CE, RoHS, FCC
• Dimensions (front bezel): 90 × 90 mm
• Valid touch area: 62 × 46 mm
• Keys: 2 (left, right)
• Front panel material: Silicone rubber
• Interfaces: USB, PS/2 (or others on request)
• Power supply: 5.0 V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, macOS, iOS, Android
• Storage temperature: -45°C to +90°C
• Operating temperature: -40°C to +80°C
• Protection: IP65 (front)
• Humidity: 20–100% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty

Applications

• Industrial control panels and HMI stations
• Medical consoles and diagnostic equipment
• Marine and navigation systems
• Outdoor kiosks, ticketing and information terminals
• Custom workstations and ruggedized PCs

Compliance and support

• Certified CE, RoHS, FCC
• Plug-and-play connectivity with common OS
• Technical support and 1-year limited warranty from CNKHTECH
