Industrial touchpad KH-MB80-TP

for roboticsfor the food industryfor clean rooms

Product Overview

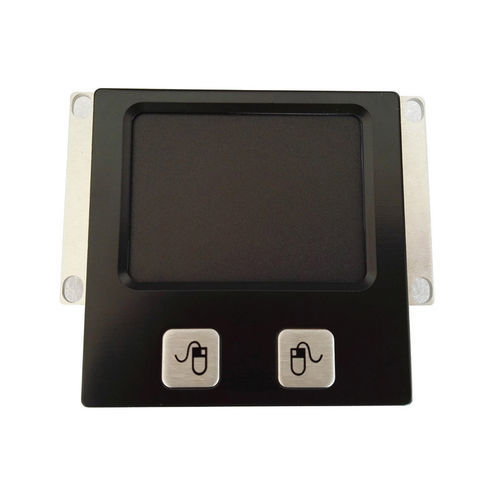

The KH-MB80-TP is a panel-mount touchpad module with an electro-black stainless steel front panel. It features high-precision pressure sensing and a light-touch, non-fatigue surface. The compact 80 x 80 mm housing integrates with darker control panels and modern workstations. Fully sealed construction provides waterproof and dustproof performance and supports low-power operation for demanding environments.

Applications
Suitable for control rooms, dark-themed operator consoles, broadcast studios, industrial and medical workstations requiring a durable, sealed pointing device with comfortable long-term use.

Features

• High-precision pressure sensing technology
• Electro-black stainless steel front panel
• Light-touch, non-fatigue surface for extended use
• Waterproof two buttons (Left, Right)
• Fully sealed waterproof & dustproof design (front: IP65)
• Low power consumption
• USB, PS/2 or other interface options

Product Details
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-MB80-TP

Specifications (table style)
Dimensions: 80 x 80 mm
Valid Touch Area: 62 x 46 mm
Keys: 2 (Left, Right)
Front Panel: Stainless steel (electro-black finish)
Interface: USB, PS/2 or others
Power Supply: 5.0V DC ±5%
X/Y Position Reporting: Relative
X/Y Position Sensing / Resolution: 1000 points/inch (40 points/mm)
Tracking Speed: Max. 1016 mm/second
OS Compatibility: Windows, Vista, Linux, Unix, Mac OSX, iOS, Android
Temperature Range:
Storage: -45°C to +90°C;
Operating: -40°C to +80°C
Protection Level: IP65 (front)
Humidity: 20–80% RH
Atmospheric Pressure: 60–106 Kpa
MTBF: > 50,000H
MTTR: < 30min
Warranty: 1-year limited warranty
