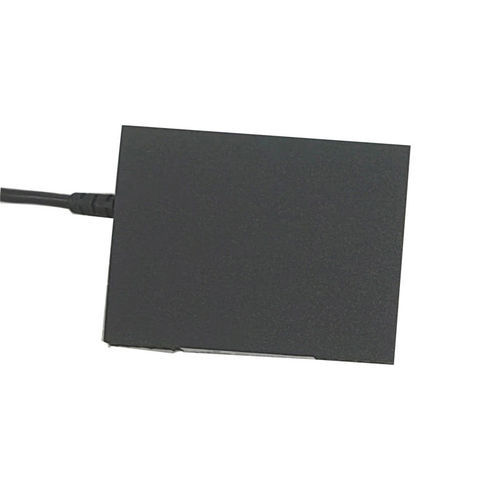

OEM touchpad KH-AE6549-TP

industrialfor the food industryfor clean environments

Product overview
The KH-AE6549-TP is an ultra-compact touchpad module designed for flexible, non-permanent integration into portable or space-limited equipment. Its back-mounted Velcro pad enables quick attachment and removal without tools, while the light-touch, non-fatigue surface provides precise cursor control. The front panel meets IP65 protection for dust and water resistance.

Typical applications
Portable test equipment, handheld devices, mobile workstations and temporary control consoles where a compact, removable pointing solution is required without permanent panel mounting.

Features

• Ultra-compact size (65 x 49 mm)
• Back-mounted Velcro for tool-free attachment
• Accurate orientation and stable tracking
• Light-touch, non-fatigue surface
• IP65 front-panel (waterproof, dustproof)
• Low power consumption
• USB or PS/2 interface (plug and play)
• Custom dimensions available

Technical specifications

• Model: KH-AE6549-TP
• Dimensions: 65 x 49 mm
• Interface: USB, PS/2 or others
• Power supply: 5.0V DC ±5%
• Resolution: 1000 points/inch (40 points/mm)
• Tracking speed: Max. 1016 m/second
• OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
• Protection: IP65 front-panel
• Operating temperature: -40°C to +80°C
• Storage temperature: -45°C to +90°C
• Humidity: 20–80% RH
• Atmospheric pressure: 60–106 Kpa
• MTBF: > 50000 H
• MTTR: < 30 min
• Warranty: 1-year limited
