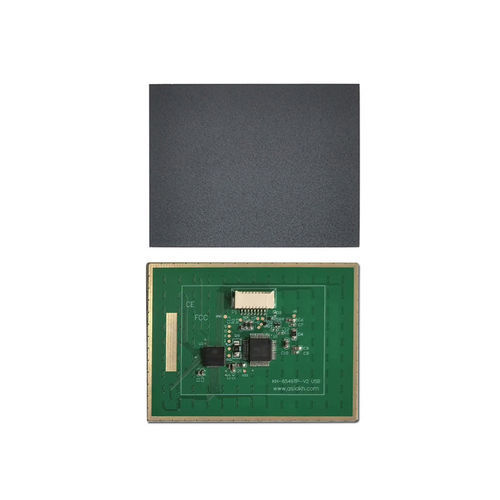

Industrial touchpad KH-6549TP-V2

for roboticsfor clean roomsfor the petroleum industry

Product overview
The KH-6549TP-V2 is an ultra-compact industrial touchpad module engineered for reliable pointing and cursor control in harsh environments. With a 65×49 mm footprint and a 60×44 mm effective touch area, it provides 800 DPI resolution and precise position sensing for integration into control panels, portable equipment and outdoor devices. Rated for operation from -40°C to +80°C, the module supports USB, PS/2 and custom interfaces for flexible system integration.

Key features

• High-precision pressure sensing technology for accurate cursor control
• Ultra-compact footprint: 65×49 mm; effective touch area: 60×44 mm
• 800 DPI resolution with 1000 points/inch position sensing
• Wide operating temperature: -40°C to +80°C; storage: -45°C to +90°C
• Multiple interface options: USB, PS/2 or custom interfaces
• Designed for industrial, outdoor and portable applications

Technical specifications

• Model: KH-6549TP-V2
• Dimensions (footprint): 65 × 49 mm
• Effective touch area: 60 × 44 mm
• Resolution: 800 DPI
• Position sensing resolution: 1000 points/inch (40 points/mm)
• Interface: USB, PS/2 or others (customized)
• Power supply: 5.0 V DC ±5%
• X/Y reporting: Relative
• Tracking speed: Max. 1016 m/second
• OS compatibility: Windows (all versions), Linux, Unix, macOS, iOS, Android
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Humidity: 20–80% RH
• Atmospheric pressure: 60–106 Kpa.
• MTBF: > 50000 hours;
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty

Applications

• Industrial control panels and HMI devices
• Outdoor instrumentation and kiosks
• Portable and ruggedized equipment
• Automated machinery interfaces

Compliance & support

• 1-year limited warranty
• Technical support for interface customization and integration
• Designed for extended MTBF in industrial deployments
