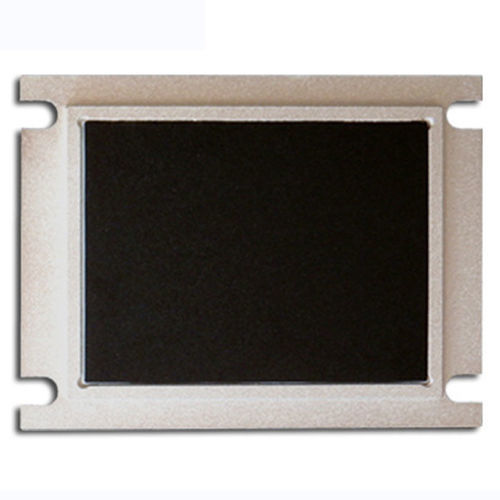

Robotic touchpad KH-M088-TP

for the food industrycommercialmedical

Product Overview
The KH-M088-TP is a panel-mount pressure touchpad module with high-precision pressure sensing and a metal front panel. Rear-mount design and IP65 front sealing allow reliable installation in industrial control systems and other equipment requiring a sealed pointing device.

The light-touch, non-fatigue surface offers precise cursor control for prolonged operations. Suitable for integration into industrial control panels, kiosks, medical devices, and marine consoles where a sealed, responsive pointing solution is required.

Features

• High-precision pressure sensing technology
• Metal front panel with rear mounting solution
• Light-touch, non-fatigue surface
• IP65 waterproof and dustproof (front)
• Low power consumption
• PS/2 or USB interface (plug and play)
• Customizable layout available

Technical specifications

• Model Number: KH-M088-TP
• Brand: CNKHTECH
• Place of Origin: China
• Certifications: CE / ROHS / FCC
• Dimensions: 88 x 67 mm
• Front Panel: Metal
• Interface: USB, PS/2 or others
• Power Supply: 5.0V DC ±5%
• X/Y Position Reporting: Relative
• X/Y Position Sensing Resolution: 1000 points/inch (40 points/mm)
• Tracking Speed: Max. 1016 m/second
• OS Compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature Range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
• Protection Level: IP65 (front)
• Humidity: 20–80% RH
• Atmospheric Pressure: 60–106 Kpa
• MTBF: > 50000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
