Touchpad for the aerospace industry KH-MF80-TP

for the petroleum industrycommercialmedical

Overview

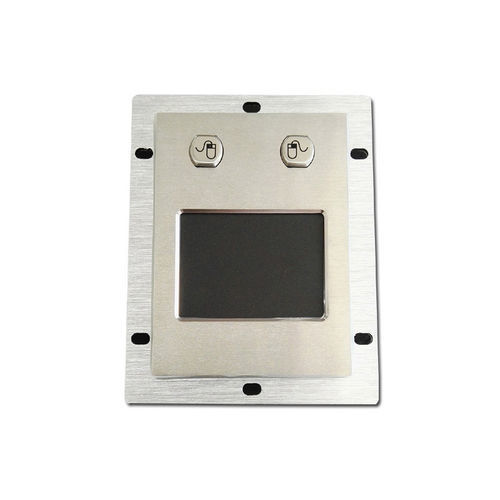

The KH-MF80-TP is a medium-format panel-mount pressure-sensing touchpad engineered for industrial and medical control interfaces where precise cursor control and a compact footprint are required. It integrates high-precision pressure sensing with a light-touch, non-fatigue surface and two-button operation for ergonomic, repeatable control. The IP65-rated stainless steel front provides dust and water protection and supports customizable layouts to fit specific panel designs. Place of Origin: China. Brand: CNKHTECH. Certifications: CE / ROHS / FCC. Model Number: KH-MF80-TP.

Features

• High-precision pressure sensing technology
• Light-touch, non-fatigue surface for extended operator comfort
• Two mechanical buttons (Left, Right)
• Front panel protection IP65 (waterproof and dustproof)
• Stainless steel front for harsh environments
• Low power consumption
• PS/2 or USB interface (plug and play)
• Customizable layout and mounting options

Specifications
Model: KH-MF80-TP
Brand: CNKHTECH
Dimensions: 80 x 110 mm
Keys: 2 (left, right)
Front Panel Material: Stainless steel
Protection Level: IP65 (front)
Key Lifespan: Approx. 1,000,000 actuations
Interface: USB, PS/2 or others
Power Supply: 5.0V DC ±5%
Resolution (X/Y Position Sensing): 1000 points/inch (40 points/mm)
Tracking Speed: Max. 1016 m/second
X/Y Position Reporting: Relative
OS Compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
Operating Temperature: -40°C to +80°C
Storage Temperature: -45°C to +90°C
Humidity: 20–90% RH
Atmospheric Pressure: 60–106 KPa
MTBF: > 50,000 H
MTTR: < 30 min
Warranty: 1-year limited warranty
