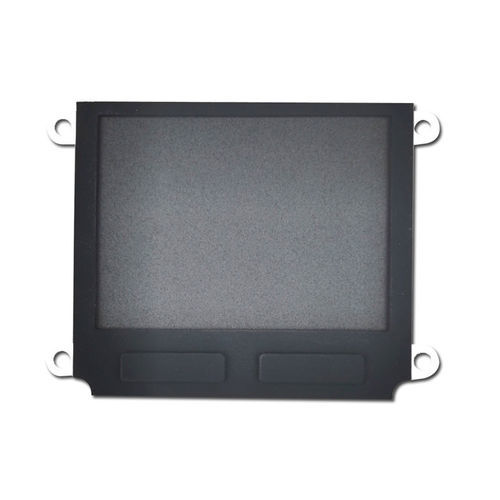

Medical touchpad KH-6549-PM

industrialfor industryfor business

Product Overview
The KH-6549-PM is a panel-mount touchpad module with high-precision pressure sensing and a metal rear-mount design. It features a light-touch, non-fatigue surface and waterproof left/right buttons, engineered for reliable, low-power operation in industrial environments. Suitable for integration into industrial control panels, medical devices, marine consoles and other applications requiring a durable, responsive pointing solution.

Features

• High-precision pressure sensing touchpad
• Metal panel with rear mounting solution
• Light-touch, non-fatigue surface design
• Two waterproof buttons (Left, Right)
• Low power consumption
• USB, PS/2 or other interface options

Specifications
Dimensions: 72 x 63 mm
Valid Touch Board: 62 x 46 mm
Front Panel: Metal & Silicone
Interface: USB, PS/2 or others
Power Supply: 5.0V DC ±5%
X/Y Position Reporting: Relative
X/Y Position Sensing / Resolution: 1000 points/inch (40 points/mm)
Tracking Speed: Max. 1016m/second
OS Compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
Temperature Range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
Protection Level: IP65 (front)
Humidity: 20–80% RH
Atmospheric Pressure: 60–106 Kpa
MTBF: > 50000H
MTTR: < 30min
Warranty: 1-year limited warranty

Characteristics / Technical specifications

• Model: KH-6549-PM
• Place of Origin: China
• Brand: CNKHTECH
• Certifications: CE, ROHS, FCC
• Panel-mount, rear-mount metal design
• Waterproof left and right buttons
• Low-power operation for extended use
• Suitable for industrial, medical, marine, and control-panel applications
