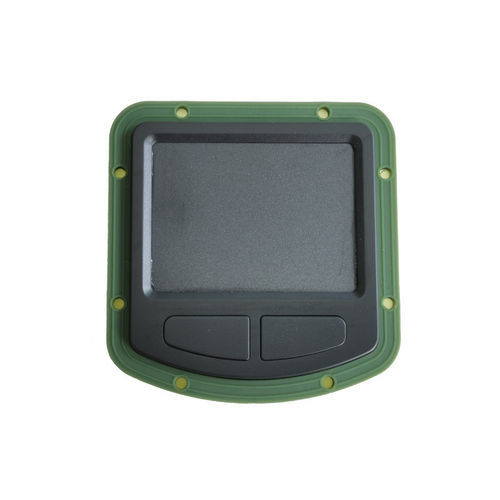

Robotic touchpad KH-M87-TP

for the food industrycommercialfor the food industry

Product Overview
The KH-M87-TP from CNKHTECH is an ultra-slim, dynamically sealed industrial touchpad designed for harsh environments. The IP65-rated front allows direct washdown cleaning while protecting against water ingress, dust and fungal contamination. It offers 0.5 mm key travel for consistent tactile feedback, two functional left/right keys and an embedded under-panel mounting profile that saves space on control consoles and instrumentation panels.

Features

• Ultra-slim dynamic IP65 sealed design
• Waterproof, dustproof and fungus-resistant construction
• 0.5 mm key travel for tactile feedback
• Industrial-grade polymer housing with left and right buttons
• Embedded under-panel mounting for space-saving integration
• Salt spray tested for corrosion resistance
• Interfaces: USB or PS/2 (other interfaces available on request)
• Customizable key layout and finishes

Applications
Suitable for military field equipment, marine navigation consoles, food processing machinery, medical devices and industrial control systems where washable, reliable pointing devices are required.

Technical specifications

• Model: KH-M87-TP
• Brand: CNKHTECH
• Dimensions: 87 x 90 mm
• Keys: 2 (left, right)
• Key lifespan: approx. 1,000,000 actuations
• Interface: USB, PS/2 or others
• Power supply: 5.0 V DC ±5%
• X/Y position reporting: Relative
• Resolution (X/Y): 1000 points/inch (40 points/mm)
• Tracking speed: Max. 1016 m/second
• OS compatibility: Windows (all versions), Vista, Linux/Unix, Mac OS X, iOS, Android
• Temperature range: Storage -45°C to +90°C; Operating -40°C to +80°C
• Protection level: IP65 (front)
• Humidity: 20–80% RH
• Atmospheric pressure: 60–106 KPa
• MTBF: > 50000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
