Robotic touchpad KH-8048TP

for the transportation industrycommercialfor automotive applications

Product Overview

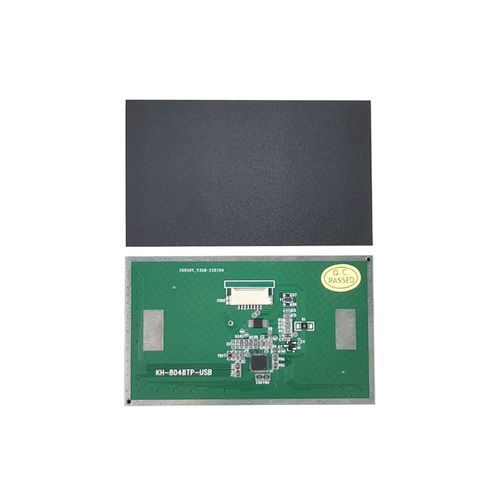

The KH-8048TP from CNKHTECH is a compact industrial touchpad designed for reliable cursor control in extreme-temperature and outdoor environments. It features an 80×48 mm footprint with a 78×46 mm effective touch area and delivers 800 DPI tracking with 1000 points/inch sensing resolution for accurate pointer movement. The unit supports USB and PS/2 interfaces and operates across a wide -40°C to +80°C temperature range, making it suitable for control panels, kiosks and portable equipment.

Features

• Precision pressure-sensing touch technology
• 800 DPI tracking; sensing resolution 1000 points/inch (40 points/mm)
• Compact 80×48 mm footprint with 78×46 mm active area
• Wide operating temperature: -40°C to +80°C
• Interfaces: USB, PS/2 (other interfaces available)
• Compatible with Windows, Linux, macOS, iOS, Android

Technical details

• Model: KH-8048TP
• Brand: CNKHTECH
• Footprint: 80×48 mm
• Effective touch area: 78×46 mm
• Resolution: 800 DPI
• Position sensing: 1000 points/inch (40 points/mm)
• Max tracking speed: 1016 mm/second
• Position reporting: Relative
• Operating temp: -40°C to +80°C
• Storage temp: -45°C to +90°C
• Power: 5.0V DC ±5%
• Interfaces: USB, PS/2 or others
• Compatibility: Windows, Linux, macOS, iOS, Android
• MTBF: >50,000 H
• MTTR: < 30 min
• Warranty: 1 year
• Certifications: CE / RoHS / FCC

Applications
Suitable for integration into industrial control panels, outdoor terminals, portable diagnostic devices, vehicle-mounted equipment and other systems requiring compact, temperature-tolerant pointing input.
