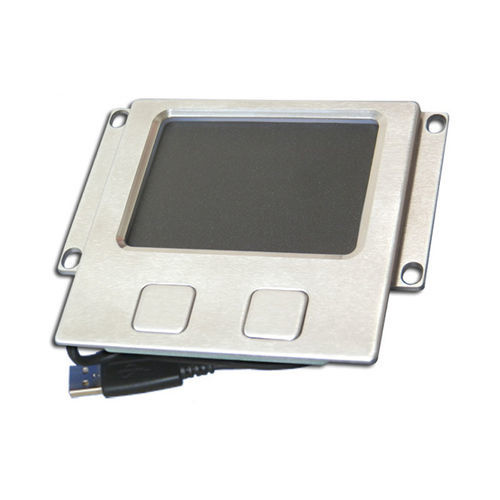

Robotic touchpad KH-MA80-TP

for the food industryindustrialprocess

Overview The KH-MA80-TP is a panel-mount industrial touchpad designed for prolonged operator use. It features a fully sealed stainless-steel front, high-precision pressure sensing and an exceptionally light-touch, low-fatigue surface. The module includes two mechanical buttons (left/right) and offers multiple interface options for straightforward integration. Place of Origin: China. Brand: CNKHTECH. Certifications: CE / ROHS / FCC.

• Key featuresHigh-precision pressure sensing technology
• Light-touch, low-fatigue surface for extended operation
• Two buttons (left and right)
• Fully sealed stainless-steel front panel
• Waterproof & dustproof (IP65 front)
• Interface options: USB, PS/2 or other selectable interfaces

• Typical applicationsIndustrial operator panels and HMIs
• Control cabinets and machine interfaces
• Outdoor kiosks and terminals
• Automation systems and process control

Specifications Dimensions: 80 x 80 mm
Valid touch area: 62 x 46 mm
Keys: 2 (left, right)
Front panel material: stainless steel (fully sealed)
Interface: USB, PS/2 or other selectable options
Power supply: 5.0 V DC ±5%
X/Y reporting: relative
Resolution: 1000 points/inch (40 points/mm)
Tracking speed: max. 1016 m/second
OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
Temperature range: Storage -45°C to +90°C; Operating -40°C to +80°C
Protection level: IP65 (front)
Humidity: 20–80% RH
Atmospheric pressure: 60–106 kPa
Reliability: MTBF > 50,000 hours; MTTR < 30 min
Warranty: 1-year limited warranty

• Certifications & warrantyCertifications: CE / ROHS / FCC
• Place of origin: China
• Warranty: 1-year limited warranty
