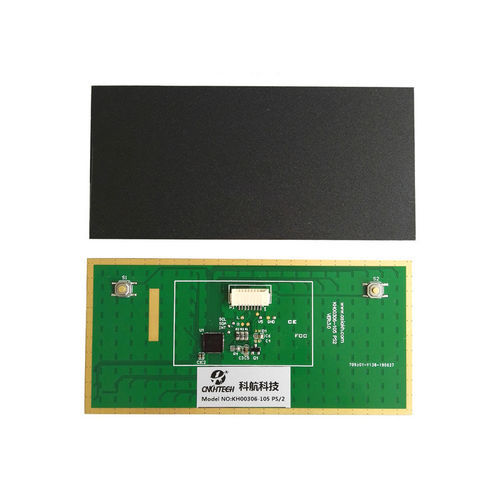

Robotic touchpad KH-00306-105TP

for the food industryfor the transportation industrycommercial

Product Overview
The KH-00306-105TP is a long-format industrial touchpad measuring 105 × 50 mm (valid touch area 103 × 48 mm). Its elongated, slim profile provides an extended horizontal tracking surface suited to narrow control panels, rail-mounted consoles and space-constrained instrument enclosures.

Place of Origin: China.
Brand: CNKHTECH.
Certifications: CE/ROHS/FCC.
Model Number: KH-00306-105TP.

Features

• Long-format design for extended horizontal tracking
• Compact, slim profile for narrow mounting spaces
• 800 DPI high-precision resolution
• Wide operating temperature range: -40°C to +80°C
• Interface options: USB, PS/2 or others
• In-house R&D and self-designed product

Applications
Designed for rail-mounted control panels, narrow instrument enclosures, transportation terminals and other installations where horizontal length is available but vertical space is limited.

Specifications
Dimensions: 105 × 50 mm
Valid touch area: 103 × 48 mm
Interface: USB, PS/2 or others
Power supply: 5.0 V DC ±5%
Resolution: 800 DPI
X/Y position reporting: Relative
Position sensing resolution: 1000 points/inch (40 points/mm)
Tracking speed: Max. 1016 m/second
OS compatibility: Windows (all versions), Vista, Linux, Unix, macOS, iOS, Android
Temperature range: Operating -40°C to +80°C; Storage -45°C to +90°C
Humidity: 20–80% RH
Atmospheric pressure: 60–106 KPa
MTBF: > 50,000 h
MTTR: < 30 min
Warranty: 1-year limited warranty
