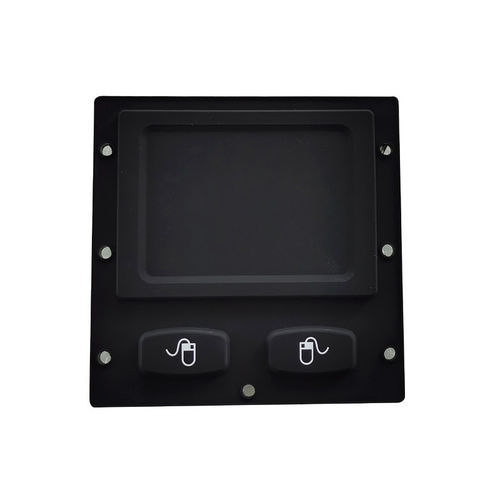

Industrial touchpad KH-MA90-TP

for roboticsfor clean roomscommercial

Product Overview
The KH-MA90-TP is a panel-mount silicone touchpad module designed for integration into industrial control systems and other professional equipment. The dynamically sealed silicone surface provides a sealed pointing interface with IP67 front protection, enabling reliable operation in dusty, wet, or marine environments. The module includes two function keys for left/right click and supports PS/2 or USB interfaces for straightforward connectivity.

Features

• Dynamic sealed silicone rubber touch surface suitable for harsh environments
• IP67 front-panel rating (waterproof and dustproof)
• Panel-mount form factor with 90 x 90 mm outer dimensions
• Two mechanical function keys (Left, Right)
• Standard interfaces: USB or PS/2 (plug and play); other interfaces available on request

Specifications
Model: KH-MA90-TP
Brand: CNKHTECH
Outer dimensions: 90 x 90 mm
Active touch area: 62 x 46 mm
Keys: 2 (Left, Right)
Front panel material: Silicone rubber
Interface: USB, PS/2 or others
Power supply: 5.0 V DC ±5%
OS compatibility: Windows (all versions), Linux/Unix, Mac OS X, iOS, Android
Protection level: IP67 (front)
Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
Humidity: 20–100% RH
Atmospheric pressure: 60–106 kPa
MTBF: > 50,000 h; MTTR: < 30 min
Certifications: CE, RoHS, FCC
Warranty: 1-year limited warranty

Applications

• Industrial control panels and HMIs
• Medical consoles and diagnostic equipment
• Marine navigation and onboard instrumentation
• Custom kiosks, workstations and outdoor terminals

Compliance & Warranty

• Meets CE/RoHS/FCC requirements where applicable
• Front panel rated to IP67 for dust and water ingress
• Standard 1-year limited warranty; extended support and customization available on request

Ordering & Integration

• Model: KH-MA90-TP — specify required interface (USB, PS/2 or custom) when ordering
• Integration notes: panel cut-out and mounting details available in datasheet; consult CNKHTECH for customization and volume pricing
