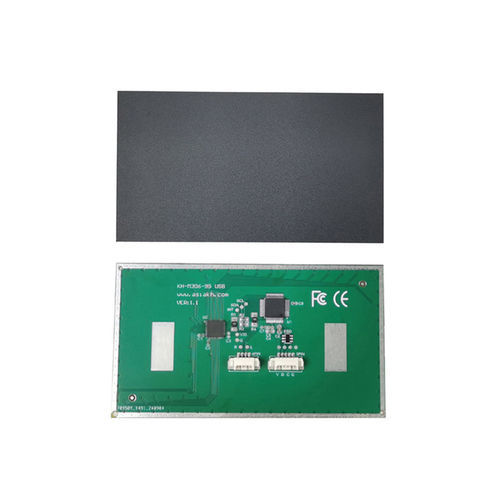

Robotic touchpad KH-M306-95TP

for the transportation industrycommercialfor automotive applications

Overview
The KH-M306-95TP is a mid-size industrial touchpad positioned between ultra-compact and standard formats. With a 95×54 mm footprint and a 93×52 mm active area, it provides expanded cursor control while maintaining a compact profile for space-constrained installations. Engineered for extreme environments, it operates from -40°C to +80°C and offers 800 DPI resolution.

Typical applications include industrial control panels, medical workstations and outdoor terminals requiring reliable cursor control in harsh conditions.

Features

• Mid-size format: 95×54 mm (93×52 mm active area)
• 800 DPI high-precision resolution
• Wide operating temperature range for extreme environments
• Interface options: USB, PS/2 or other interfaces
• Self-designed and developed unit

Technical specifications

• Model: KH-M306-95TP
• Form factor: Mid-size touchpad (95×54 mm footprint)
• Active area: 93×52 mm
• Resolution: 800 DPI (sensing resolution up to 1000 points/inch)
• Interfaces: USB, PS/2 or other options
• Power: 5.0 V DC ±5%
• Reporting: Relative X/Y position reporting
• Tracking speed: Up to 1016 m/second
• OS support: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -40°C to +80°C
• Storage temperature: -45°C to +90°C
• Humidity: 20–80% RH
• Atmospheric pressure: 60–106 kPa
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
