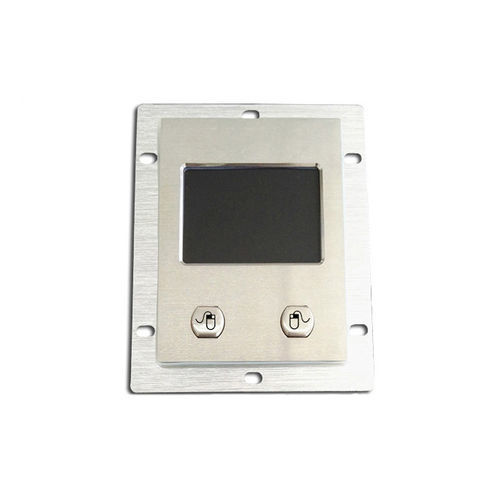

Robotic touchpad KH-MF80V2-TP

for the food industryfor the transportation industrycommercial

Product Overview
Stainless steel panel-mount touch mouse with high-precision pressure sensing, designed for fatigue-free cursor control in industrial and medical environments. Place of Origin: China.
Brand Name: CNKHTECH.
Certification: CE/ROHS/FCC.
Model Number: KH-MF80V2-TP.

Applications
Suitable for integration into industrial control panels, medical workstations, laboratory instruments and other equipment requiring a durable, responsive pointing device with a medium-sized touch surface.

Features

• High-precision pressure sensing technology
• Light-touch, low-fatigue surface for extended operator comfort
• Two mechanical buttons located under the touch area
• IP65 front protection: dust-tight and water resistant
• Stainless steel front panel for industrial durability
• Low power consumption
• Interfaces: USB or PS/2 (plug and play)

Characteristics / Technical specifications

• Dimensions: 80 x 110 mm
• Keys: 2 keys under touchpad
• Front panel material: Stainless steel
• Key lifespan: Approx. 1,000,000 actuations
• Interface: USB, PS/2 or others
• Power supply: 5.0 V DC ±5%
• X/Y position reporting: Relative
• X/Y position sensing resolution: 1000 points/inch (40 points/mm)
• Tracking speed: Max. 1016 m/second
• OS compatibility: Windows (all versions), Vista, Linux/Unix, Mac OS X, iOS, Android
• Temperature range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
• Protection level: IP65 (front)
• Humidity: 20–90% RH
• Atmospheric pressure: 60–106 Kpa.
• MTBF: > 50,000 h
• MTTR: < 30 min
• Warranty: 1-year limited warranty
