Touchpad for the transportation industry KH-7442TP

commercialindustrialfor the electronics industry

Product overview

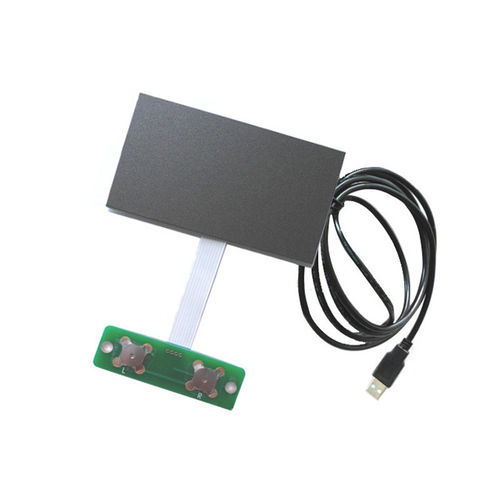

The KH-7442TP is an ultra-compact industrial touchpad designed for space-constrained control panels and embedded systems. Its 74×42 mm outer footprint and 71.5×39.5 mm active area deliver precise cursor control with a light-touch, fatigue-resistant surface. The unit includes two integrated buttons, low-power electronics and selectable USB or PS/2 interface options for straightforward integration.

Place of origin: China.
Brand: CNKHTECH.
Certifications: CE / ROHS / FCC.

Features

• Compact 74×42 mm form factor for tight installations
• Two integrated buttons (left/right) with board-mount option
• Light-touch, non-fatigue active surface
• Ingress protection when properly sealed (waterproof and dustproof)
• Low power consumption suitable for battery or low-power systems
• Multiple interface options: USB, PS/2 and custom interfaces available
• Custom dimensions and configurations on request

Technical details

• Model: KH-7442TP
• Outer dimensions: 74 × 42 mm
• Active area: 71.5 × 39.5 mm
• Supported interfaces: USB, PS/2 (other options available)
• Power: 5.0V DC ±5%
• Pointer resolution: 800 DPI
• Position sensing resolution: 1000 points/inch (40 points/mm)
• Position reporting mode: Relative X/Y
• Tracking speed: up to 1016 m/second
• OS compatibility: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Humidity: 20–80% RH
• Atmospheric pressure: 60–106 kPa
• MTBF > 50,000h;
• MTTR < 30 min
• Ingress protection: waterproof and dustproof when properly sealed
• Warranty: 1-year limited warranty
