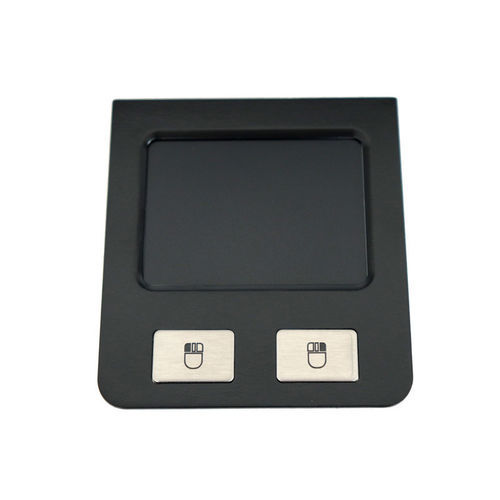

Industrial touchpad KH-MB81-TP

for businessmarineOEM

Product Overview
The KH-MB81-TP is a panel-mount touchpad module (model KH-MB81-TP) with a black electroplated stainless steel front panel and high-precision pressure sensing. It features a light-touch, non-fatigue surface, waterproof left/right buttons and low-power electronics for reliable operation in industrial, medical or marine control panels and other professional environments where front IP65 protection and a dark finish are required.

Ideal for integration into industrial control panels, medical equipment, marine consoles, and other environments requiring a durable, responsive, and low-fatigue pointing solution with a sleek black finish.

Features

• High-precision pressure sensing touchpad
• Black electroplated stainless steel front panel
• Light-touch, non-fatigue surface design
• Front protection: IP65
• Two waterproof buttons (Left, Right)
• Multiple interface options: USB, PS/2 or selectable alternatives

Technical specifications

• Model: KH-MB81-TP
• Front panel material: electroplated stainless steel (black)
• Touch sensing: high-precision pressure sensing
• Valid touch area: 62 x 46 mm
• Overall dimensions: 81 x 90 mm
• Buttons: 2 waterproof mechanical/electrical buttons (Left, Right)
• Protection: IP65 front protection
• Power: 5.0 V DC ±5%
• Interfaces available: USB, PS/2 or other selectable interfaces
• Position reporting: Relative X/Y
• Resolution: 1000 points/inch (40 points/mm)
• Tracking speed: max 1016 m/second
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Humidity range: 20–80% RH
• Atmospheric pressure: 60–106 kPa
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
