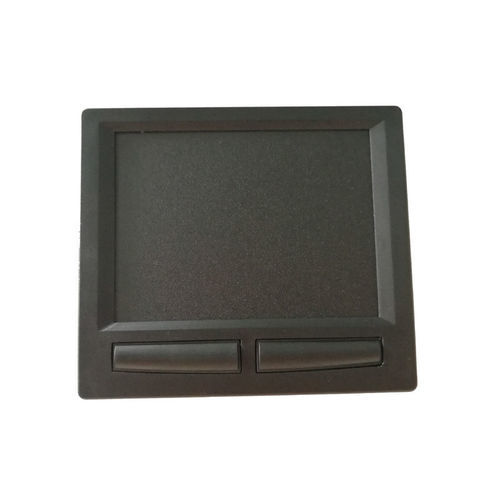

Industrial Device touchpad KH-MA79-TP

industrialfor industrial applicationslaboratory

Product Overview
The KH-MA79-TP is a compact rear-panel mount industrial touchpad module designed for space-constrained control panels. It uses high-precision pressure sensing technology to provide accurate relative cursor control with a light-touch, low-fatigue surface suitable for prolonged operation. The module's compact 79×70 mm footprint and low power requirements make it suitable for embedded systems and portable equipment.

Applications
Suitable for integration into compact industrial or military control panels, medical devices, portable computers and other equipment where panel space is limited and reliable pointing is required.

Features

• Industrial plastic front panel
• High-precision pressure sensing
• Light-touch, low-fatigue active surface
• Two mechanical buttons: left and right
• Rear-panel mounting design
• Compact dimensions: 79 × 70 mm
• Low power consumption (5 V DC)
• Interfaces: USB, PS/2 or custom options

Certifications & Origin
Place of Origin: China.
Certifications: CE, RoHS, FCC.

Technical specifications

• Overall dimensions: 79 × 70 mm
• Active touch area: 62 × 46 mm
• Keys: 2 (left, right)
• Front panel material: industrial plastic
• Key lifespan: approx. 1,000,000 actuations
• Interface: USB, PS/2 or others
• Power supply: 5.0 V DC ±5%
• X/Y reporting: relative
• Resolution: 1000 points/inch (40 points/mm)
• Max tracking speed: 1016 m/second
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Storage -45°C to +90°C; Operating -40°C to +80°C
• Protection: IP65 (front)
• Humidity: 20–80% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 h
• MTTR: < 30 min
• Warranty: 1-year limited warranty
