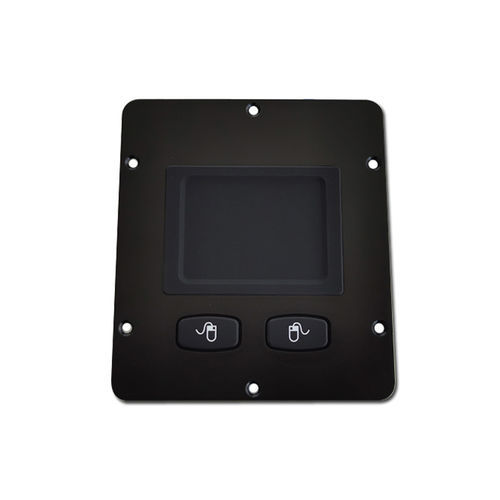

Robotic touchpad KH-MA115B-TPV2

for nuclear applicationsfor the pharmaceutical industryfor automotive applications

Overview
The KH-MA115B-TPV2 is a fully domestically developed, patented industrial touchpad designed for equipment control in harsh environments. It features an embedded reinforced construction with a silicone-sealed surface (touchpad and buttons) providing waterproof, dustproof and oil-proof protection to IP67. The unit uses a 304 stainless steel front panel, supports recessed panel mounting and includes an integrated scroll wheel for navigation.

Features

• Proprietary, patented design
• Silicone-sealed touchpad and buttons (waterproof, dustproof, oil-proof)
• IP67 front protection for harsh industrial conditions
• 304 stainless steel front panel
• Integrated scroll wheel function
• Sealed touch surface for consistent operation
• Multiple interface options: USB, PS/2 or others

Recommended Applications
Intended for equipment control in demanding sectors such as nuclear power, pharmaceutical manufacturing, petrochemical plants and other harsh-environment installations.

Specifications
Dimensions: 115 x 128 mm
Active touch area: 62 x 46 mm
Keys: 2 (left, right)
Front panel: 304 stainless steel
Interface: USB, PS/2 or others
Power supply: 5.0V DC ±5%
Touchpad expected lifespan: > 1,000,000 cycles
Resolution: 1000 points/inch (40 points/mm)
Tracking speed: Max. 1016 m/second
OS compatibility: All Windows versions, Vista/Linux/Unix/Mac OSX/iOS, BeOS
Temperature range: Storage: -40°C to +80°C; Operating: -30°C to +70°C
Protection level: IP67 (front)
Humidity: 20–80% RH
Atmospheric pressure: 60–106 kPa
MTBF: > 50,000 h
MTTR: < 30 min
Warranty: 1-year limited warranty

Certifications & Origin
Place of Origin: China; Brand: CNKHTECH; Certifications: CE / ROHS / FCC

Technical specifications

• Model: KH-MA115B-TPV2
• Protection: IP67 front sealing
• Front panel material: 304 stainless steel
• Dimensions (overall): 115 x 128 mm
• Active touch area: 62 x 46 mm
• Keys: 2 (left, right)
• Interfaces supported: USB, PS/2 or others
• Power supply: 5.0V DC ±5%
• Touchpad lifespan: > 1,000,000 cycles
• Resolution: 1000 points/inch (40 points/mm)
• Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
• Humidity: 20–80% RH
• MTBF: > 50,000 hours
• Warranty: 1-year limited warranty
