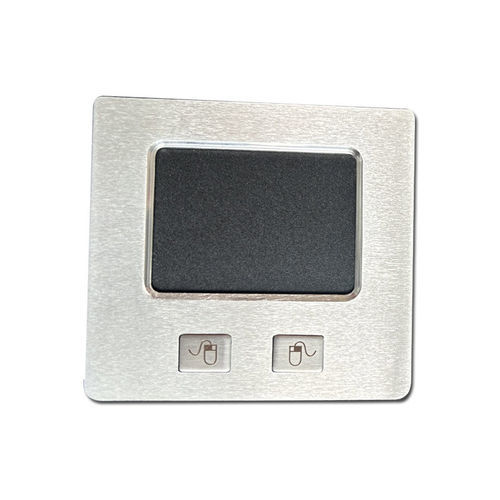

Robotic touchpad KH-MA96-TP

commercialmedicalindustrial

Product overview
The KH-MA96-TP is a panel-mount stainless steel touchpad designed for industrial environments that require a large cursor control surface and reliable sealed protection. The module uses high-precision pressure sensing for accurate tracking and a light-touch, non-fatigue surface suitable for extended operator use. Front-panel bolt mounting and IP65 front sealing provide durability in harsh conditions.

Applications

• Industrial control panels and HMI enclosures
• Medical workstations and diagnostic equipment
• Laboratory instruments and testing stations
• Public or outdoor terminals requiring sealed input devices

Key features

• Panel-mount stainless steel construction
• High-precision pressure sensing technology
• Light-touch, anti-fatigue surface for prolonged use
• Two mechanical buttons for left and right click
• Front-side IP65 protection against dust and water
• Top metal panel with bolt mounting for secure installation
• Low power consumption and wide OS compatibility

Technical specifications
Model: KH-MA96-TP
Dimensions: 96 × 87 mm
Front panel material: Stainless steel
Keys: 2 (left, right)
Key lifespan: Approx. 1,000,000 actuations
Interface: USB, PS/2 or others
Power supply: 5.0 V DC ±5%
X/Y reporting: Relative
Resolution: 1000 points/inch (40 points/mm)
Tracking speed: Max. 1016 m/second
OS compatibility: Windows (all versions), Linux/Unix, Mac OS X, iOS, Android
Temperature range: Operating -40°C to +80°C; Storage -45°C to +90°C
Protection level: IP65 (front)
Humidity: 20–80% RH
Atmospheric pressure: 60–106 kPa
MTBF: >50,000 hours
MTTR: Warranty: 1-year limited warranty
