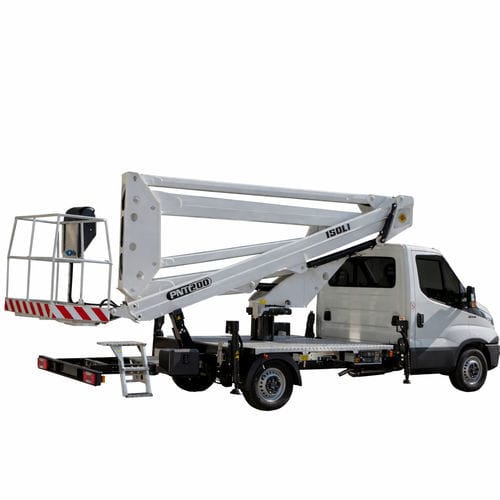

Mobile articulated boom lift PNT200 HE

truck-mountedvan-mountedhydraulic

Overview
The PNT200 HE stands out for its proven working height of 20 m and a reach (offset) of 8.20 m. KLUBB’s chassis-mounted articulated platforms are engineered for industrial users with attention to serviceability, safety and total cost of ownership. The unit delivers high performance while remaining economical to operate.

Key data

• Manufacturer: KLUBB
• Model: PNT200 HE
• Working height: 20 m
• Offset (outreach): 8.20 m
• Capacity / Max. working load: 230 kg

Technical specifications

• Max. working height: 20 m (65'1")
• Max. working outreach: 8.20 m (26'9")
• Boom rotation: 360°
• Max. working load: 230 kg
• Max. platform height: 18 m (59'05")
• Outriggers: Four HE-H outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Articulated
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic

Standard features

• Engine stop and start from the basket
• Hour counter
• Emergency circuit on manual pump
• Proportional controls on all movements
• Secure access to the work platform
• Conveyor chain for hoses inside the mast for optimum protection
• Rigid PVC protection of the controls at the top station
• 220 V circuit
• Four H-shaped outriggers, two front outriggers extendable

Examples of vehicles

• Iveco Daily (Wheelbase 3750 mm)
• Isuzu M21 (Wheelbase 3360 mm)
• Mercedes Sprinter

Green Pack
The range can be equipped with the ecological option Green Pack allowing the platforms to operate with the van engine switched off for low-emission operation and reduced fuel consumption.
